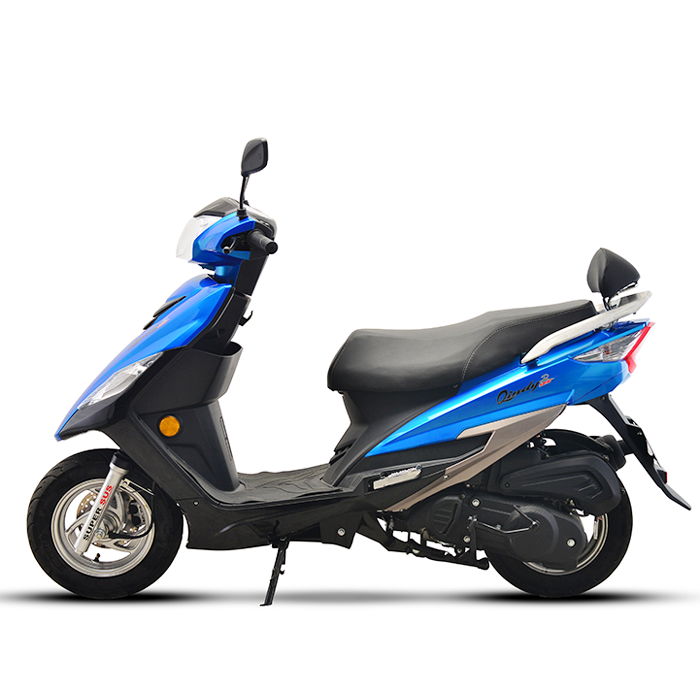

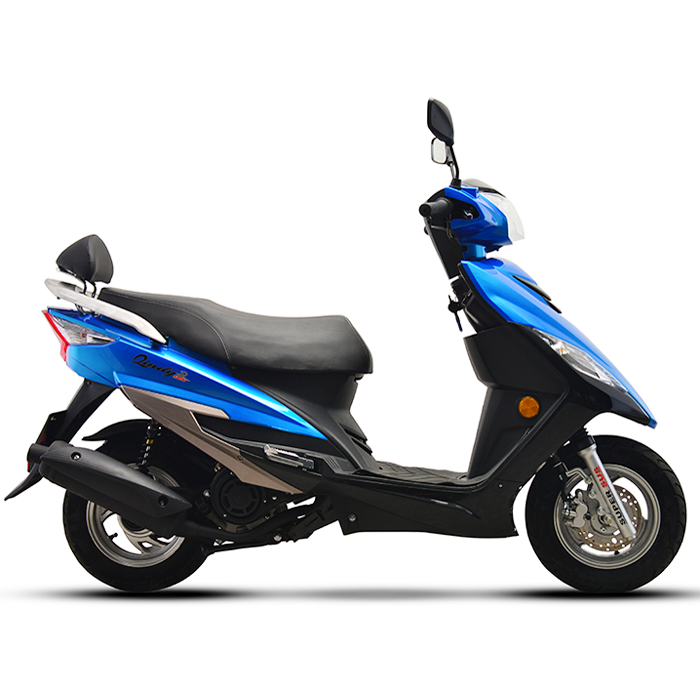

TZM100J-5

Engine model

1P51QMH

Dimension

1780*670*1080mm

Cylinder

Single

Wheel Base

1240mm

Valve

4 stroke

Ground clearance

130 mm

Cooling Type

Air-cooling

Seat Height

740 mm

Bore* Stroke

51.0*54mm

Dry weight

90 kg

Displacement

110.3 ml

Max. load

150 kg

Starter

Electrical/Kick

Max. speed

82 km/h

Ignition

Transistor

Brake (Fr./Rr.)

Disc/Hand, Drum/Hand

Rated power

5.5 Kw 8000±500 r/min

Transmission

Belt+Shaft

Max. Torque

7.8 Nm 6500±500 r/min

FR&RR Wheel

10 inch Alloy Wheels

Fuel consumption

2.2 L/100KM

FR&RR Tire

350-10 tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Packing size

1790*570*860mm

Qty in container

24/20GP, 52/40GP, 78/40HQ

M.O.Q

24 units
