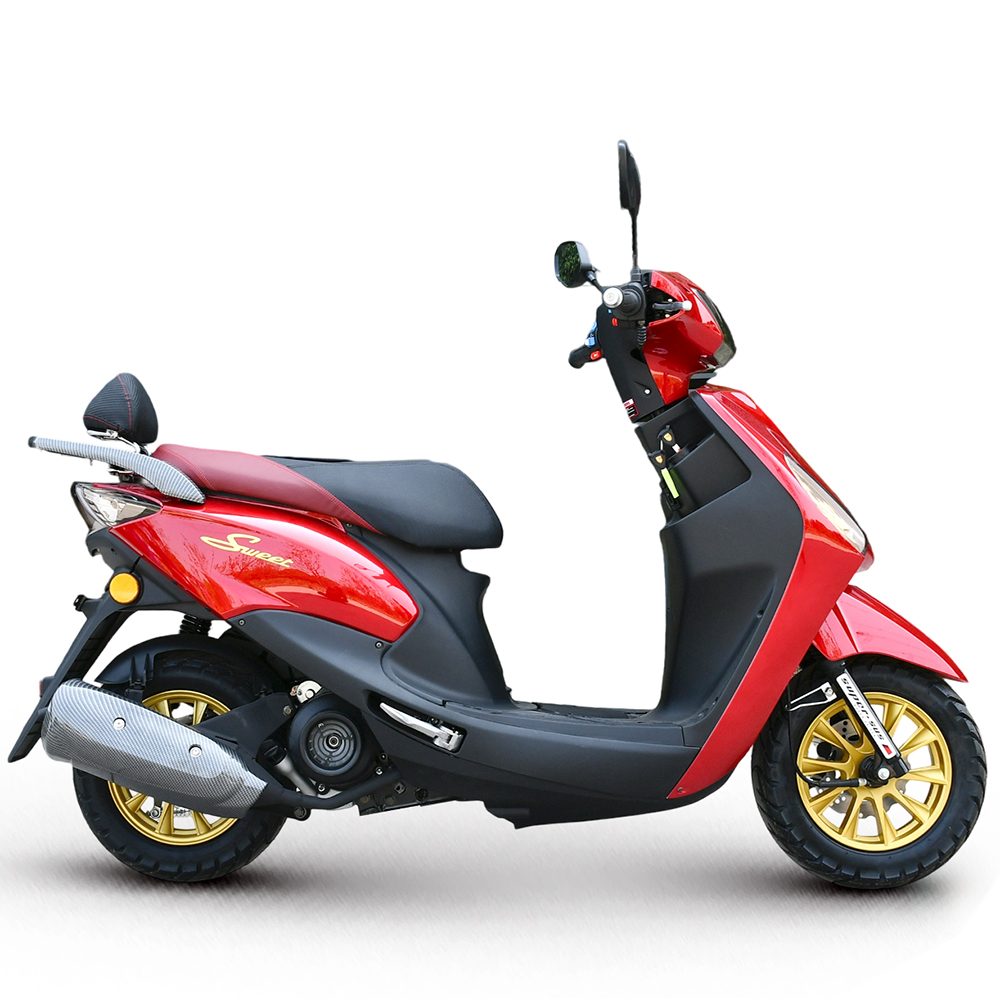

TZM110G-3 (TZM100G-3)

Engine model

1P51QMH

Dimension

1730*660*1100 mm

Cylinder

Single

Wheel Base

1190mm

Valve

4 stroke

Dry weight

90 kg

Cooling Type

Air-cooling

Max. load

150 kg

Bore* Stroke

51*54mm

Max. speed

80km/h

Displacement

110.3 ml

Clutch type

Automatic

Starter

Electrical/Kick

Front brake

Disc /Hand

Ignition

Transistor

Rear brake

Drum /Hand

Rated power

5.5 Kw 8000±500 r/min

Transmission

Belt+Shaft

Max. Torque

7.8 Nm 6500±500 r/min

Wheel

10 inch Alloy Wheels

Fuel consumption

2.2 L/100KM

Tire

350-10 tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Packing size

1700*460*860mm

Qty in container

32/20GP, 70/40GP, 105/40HQ

M.O.Q

32 units
