TZM150S-5
ZMOTOS
8711204000

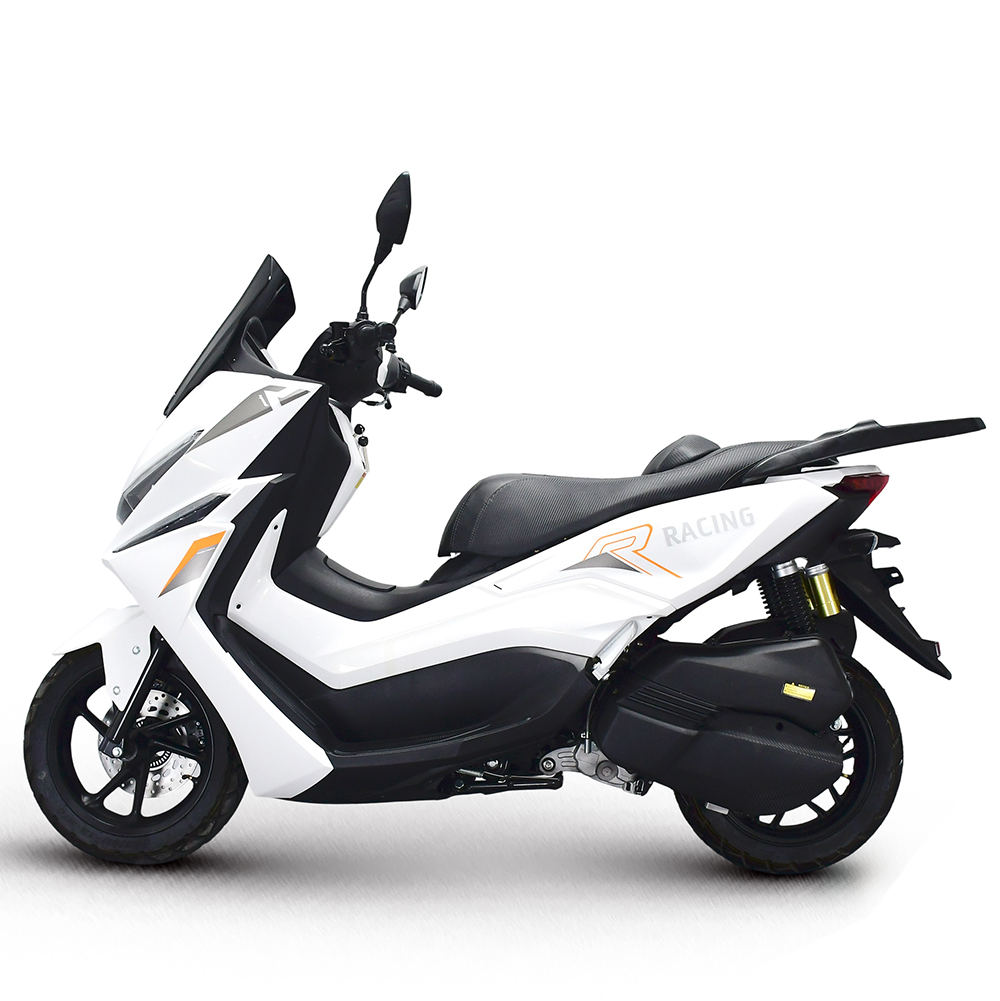

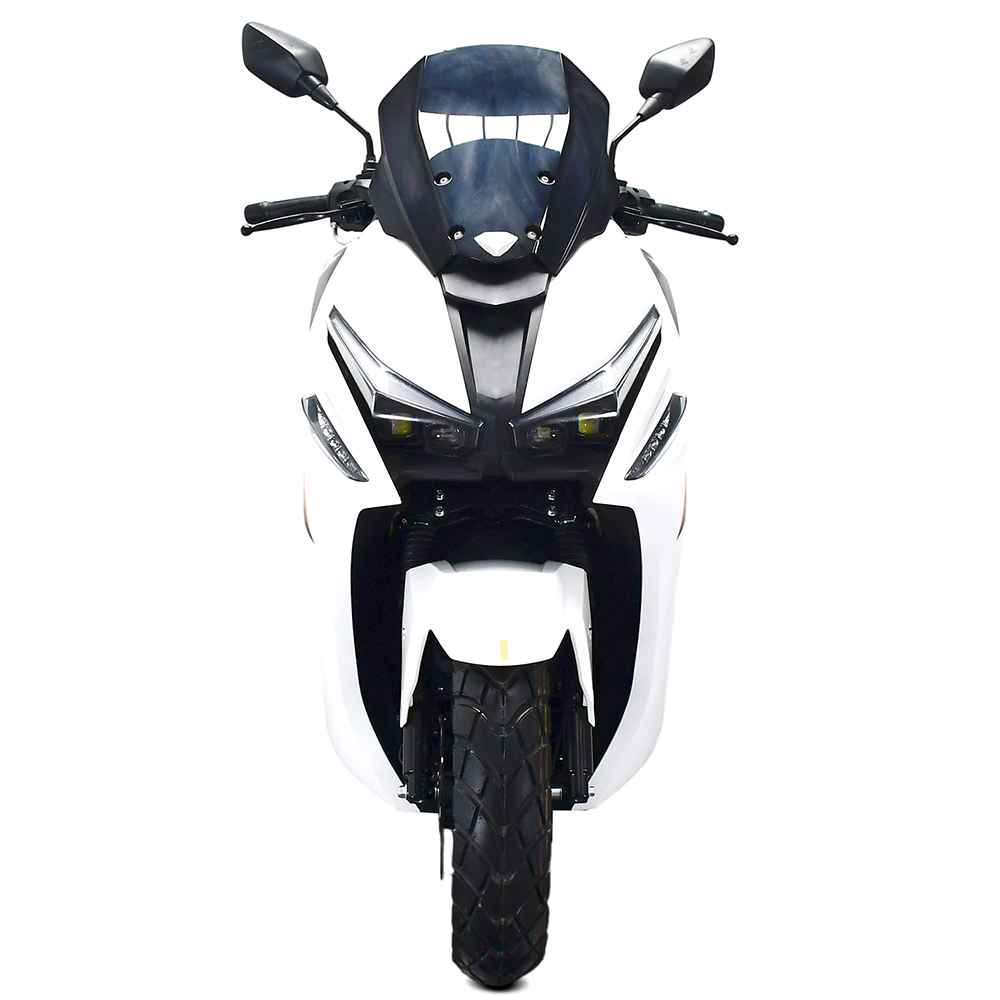

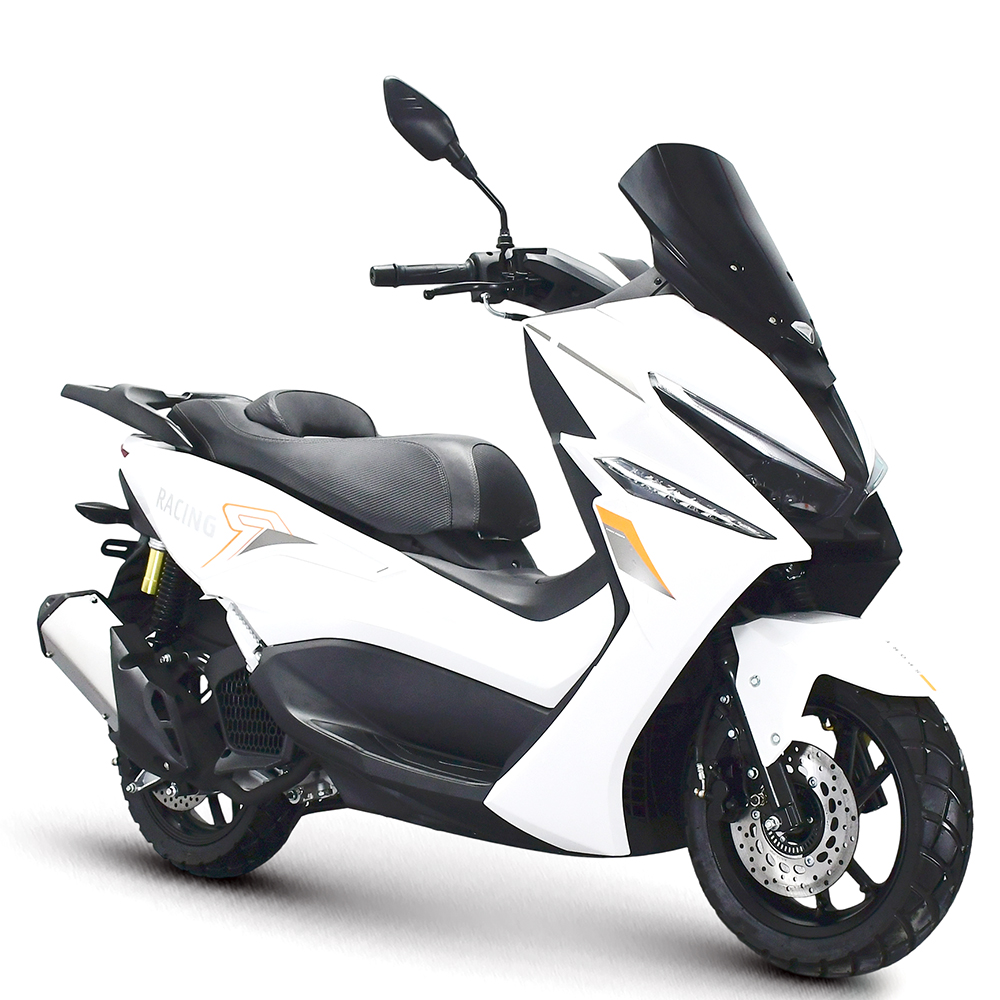

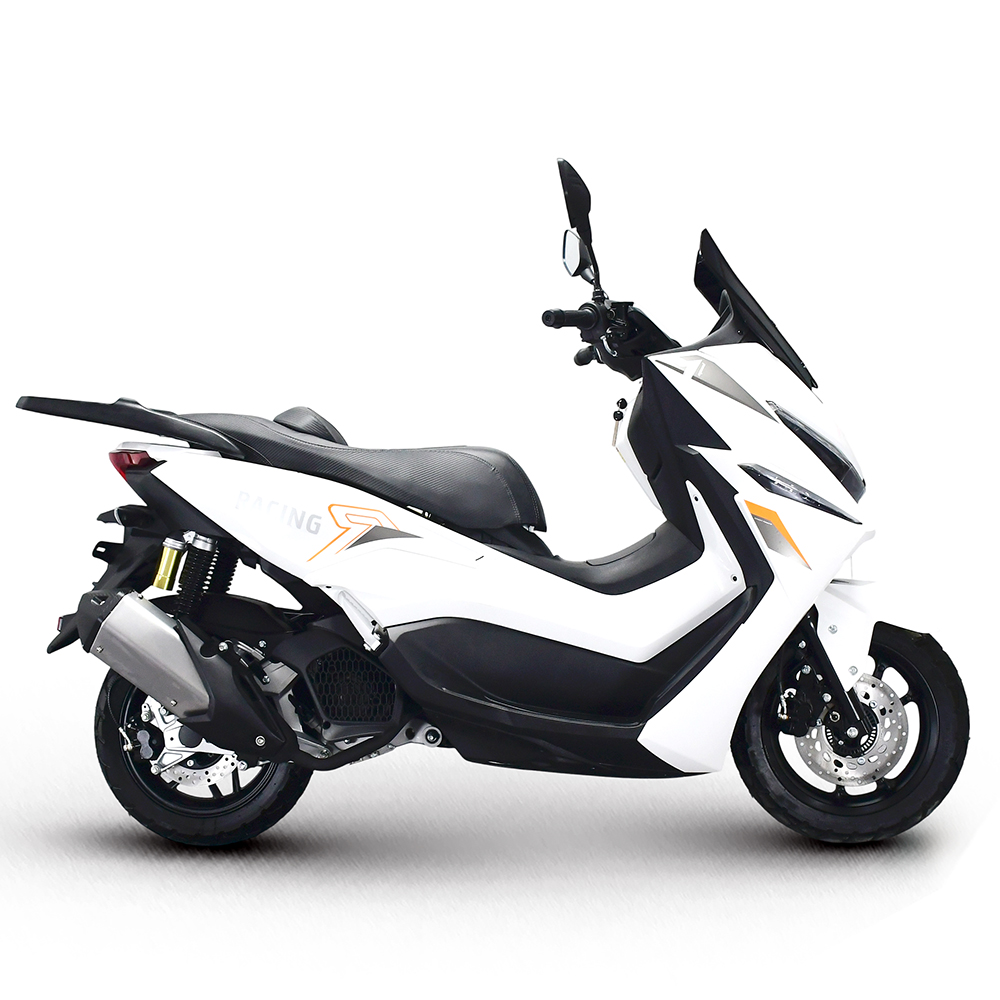

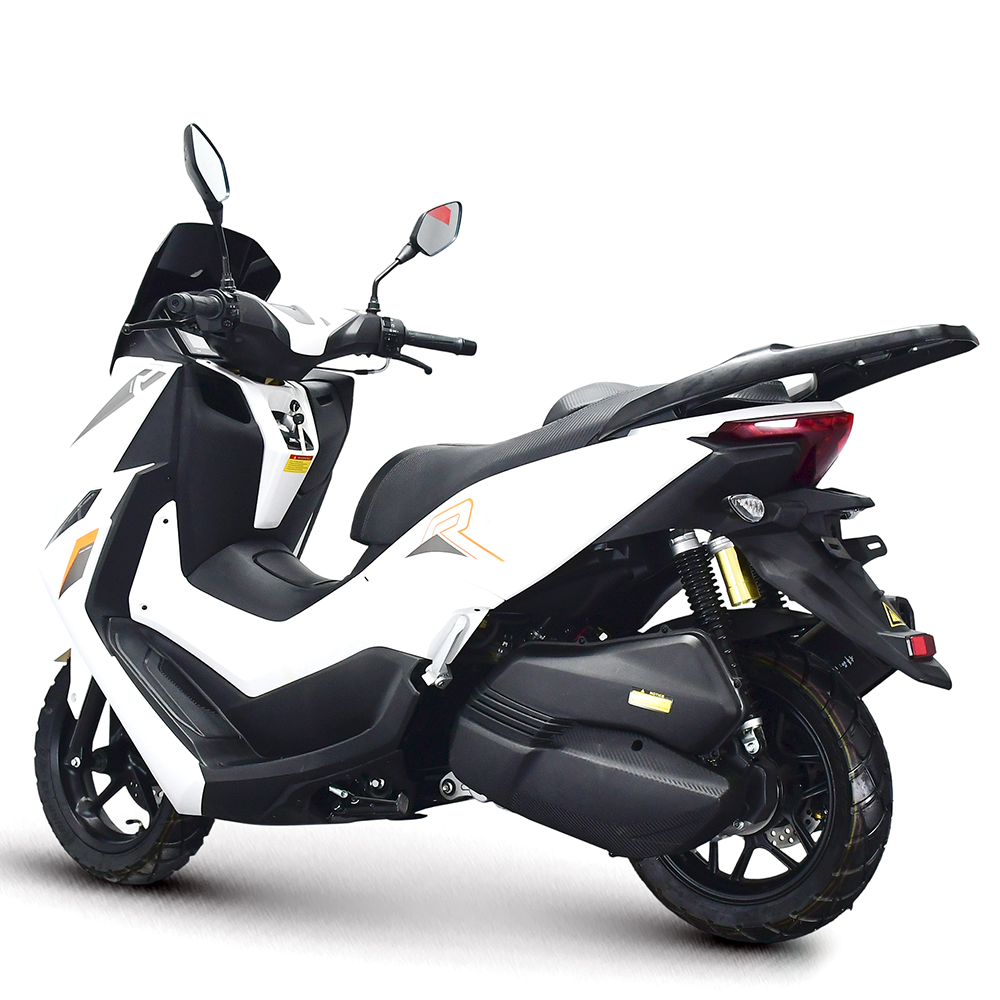

TZM150S-5 150cc/180cc Scooter
150cc/180cc Air-cooled engine,
Alloy wheels, Front and rear disc brake,
Front 110/70-13, Rear 130/70-13 Tires,
Double rear shock absorber,

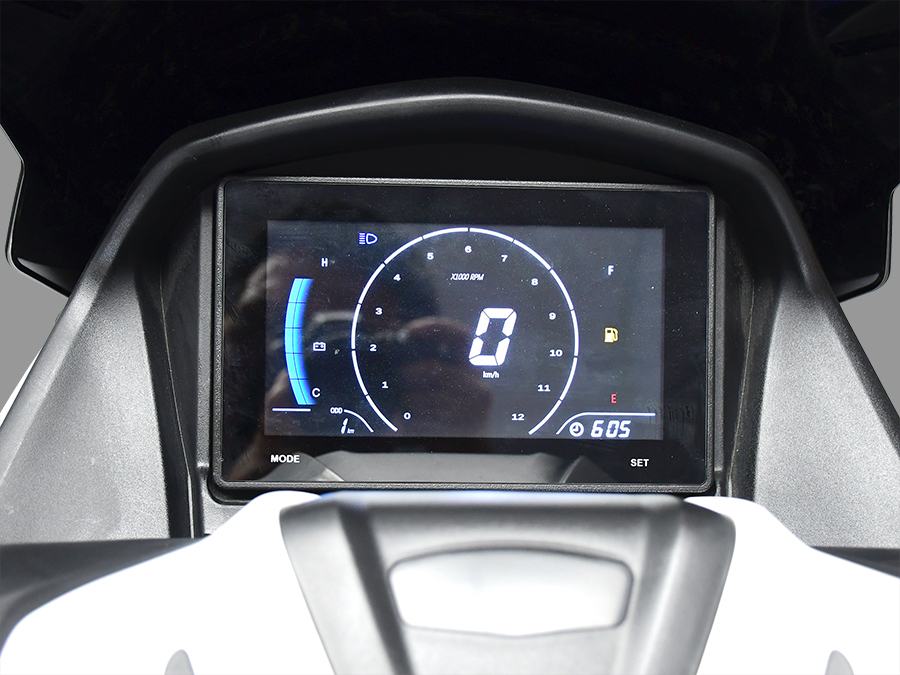

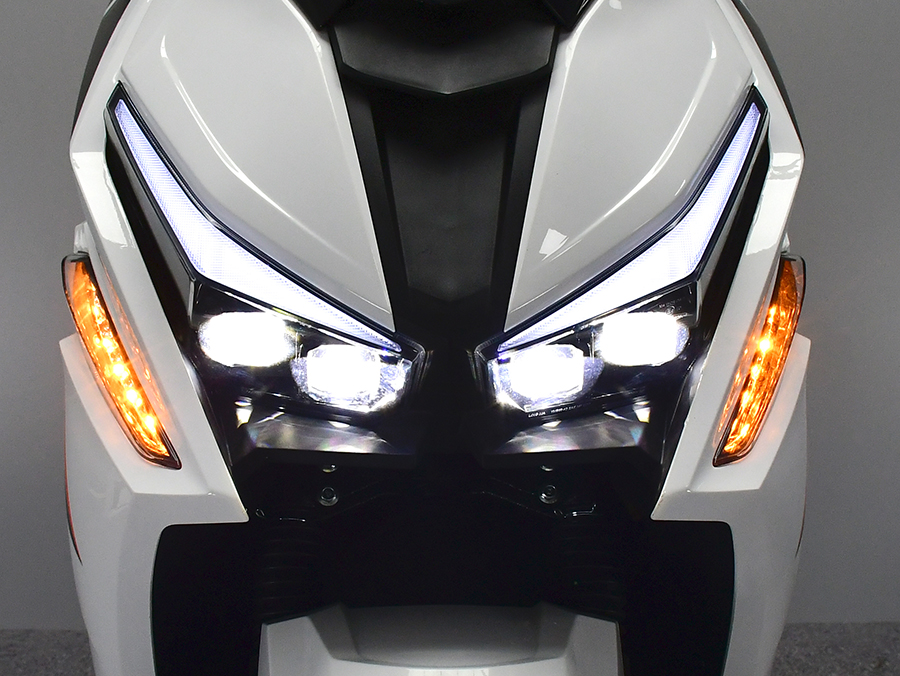

LED headlights, VA meter,
Steel muffler, Alloy rear carrier,
Remote control.
Technical Specifications:
Engine
Frame
Engine model
157QMJ
Dimension
1935*740*1160 mm
Cylinder
Single
Wheel Base
1360 mm
Valve
4 stroke
Ground clearance
125 mm
Cooling Type
Air-cooling
Seat Height
770/880 mm
Bore* Stroke
57.4*57.8mm
Dry weight
131 kg
Displacement
149.5 ml
Max. load
150 kg
Compression ratio
9.2:1
Max. speed
100 km/h
Starter
Electrical/Kick
Fuel Tank Capacity
7.1 L
Ignition
C.D.I
Brake (Fr./Rr.)
Disc/hand, Disc/hand
Rated power
7.0 Kw 7500±500 r/min
Transmission
Belt + Shaft
Max. Torque
9.8 Nm 6000±500 r/min
Tire (FR/RR)
FR. 110/70-13; RR. 130/70-13
Fuel consumption
2.6L/100KM
Battery
12V9Ah
Package
SKD
CKD
Packing status
Carton with iron bracket
Carton/Package
Packing size
1950*570*870mm
Qty in container
24/20GP, 48/40GP, 72/40HQ
M.O.Q
24 units
Detailed Pictures:
