Each electric vehicle has many different optional Status, different status have different prices. So if you want to know the exact price of any model, please tell me motor power and battery capacity you need. If you don't know how to chosen them, you can tell me your requirements for max speed and mileage for one charge, and then I will match you with suitable battery and motor according to your requirements. If you can tell me the local climate, terrain and Target consumers, This is of great reference value for us to determine the product status.
The battery and motor of this electric vehicle have the following options:
DC Motor: 72V1500W-3000W motors.
Lead acid battery: 72V20Ah-38Ah
Lithium battery: 72V30Ah-60Ah.
The motor power mainly affects the maximum speed and climbing ability, while the battery capacity mainly affects the driving range one charge. But matching a high-power motor with a high-capacity battery is a bigger principle.
SPECIFICATION
| Model | ZM-ES70 |
| DC Motor | 72V1500W | 72V2000W | 72V3000W |
| Controller | 40A/45A | 55A/60A | 80A |
| Max speed | 55/60 Km/h | 70/75 Km/h | 80-85 Km/h |
| Climbing | 18°/1 person 70KG | 20°/1 person 70KG | 25°/1 person 70KG |
| Max battery capacity | 72V60AH Portable Lithium battery / 72V38Ah Fixed Lead-acid battery |
| Distance range | 50KM/75KM/150KM | 60KM/70KM/130KM | 50KM/65KM/100KM |
| Charger tima | 6-8H |
| Dimension | 1918*765*1200 mm |
| Wheelbase | 1330 mm |
| Ground clearance | 140 mm |
| Seat Height | 800mm |
| Max Load | 150KG | 150KG | 150KG |
| Front & rear Tire | 350-10 tubeless | 90/90-12 tubeless |
| Dry weight | 75 KG (W/O Battery） | 77 KG (W/O Battery） | 81 KG (W/O Battery） |
| Gear | Three Gears / Reverse gear is optional |

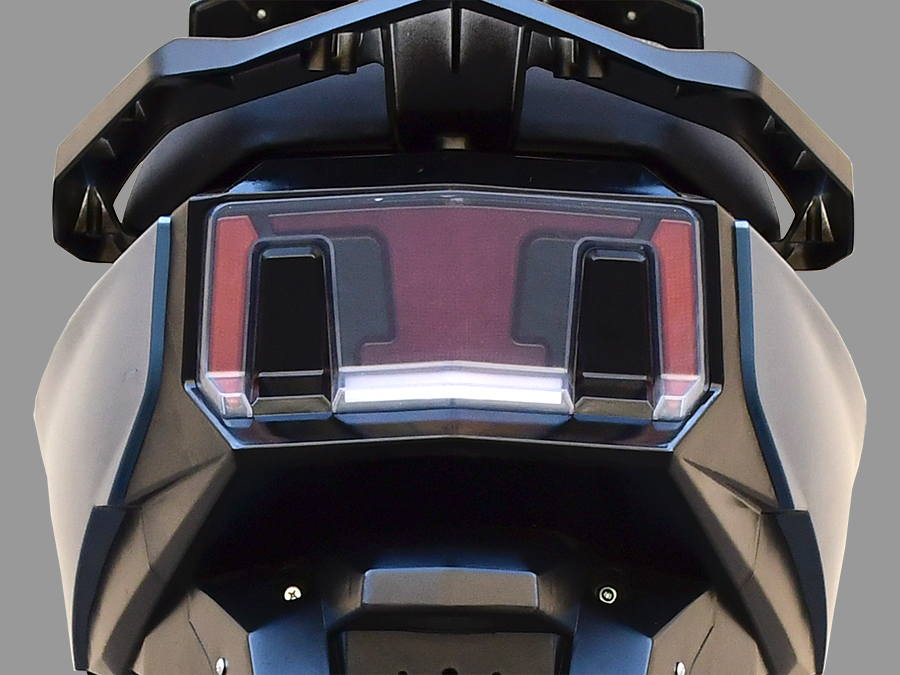

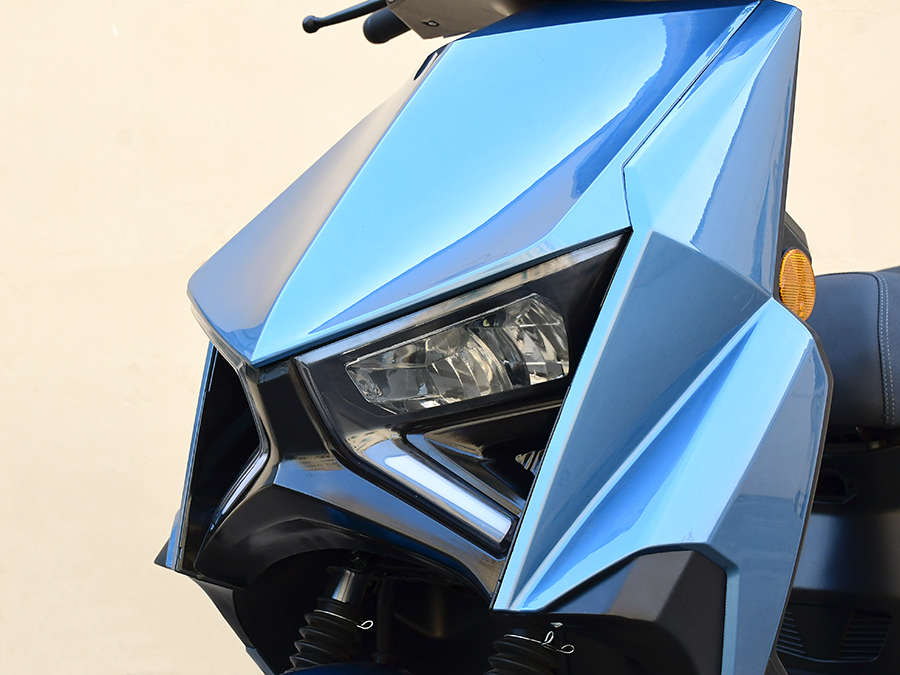

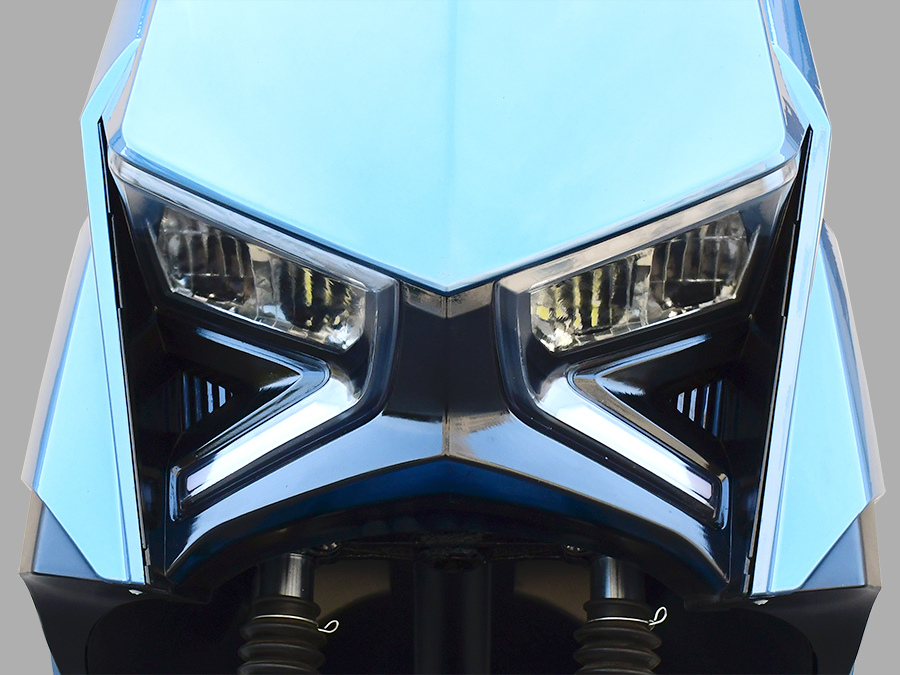

| Lighting | LED (EEC) |
| Speedometer | LCD (Liquid Crystal Display) |
| Brake system | Front: Disc/Hand, Rear：Disc/Hand |
| Suspension system | Hydraulic / Hydraulic |
| Packing size |
|
| Quantity | 120/40HQ |
