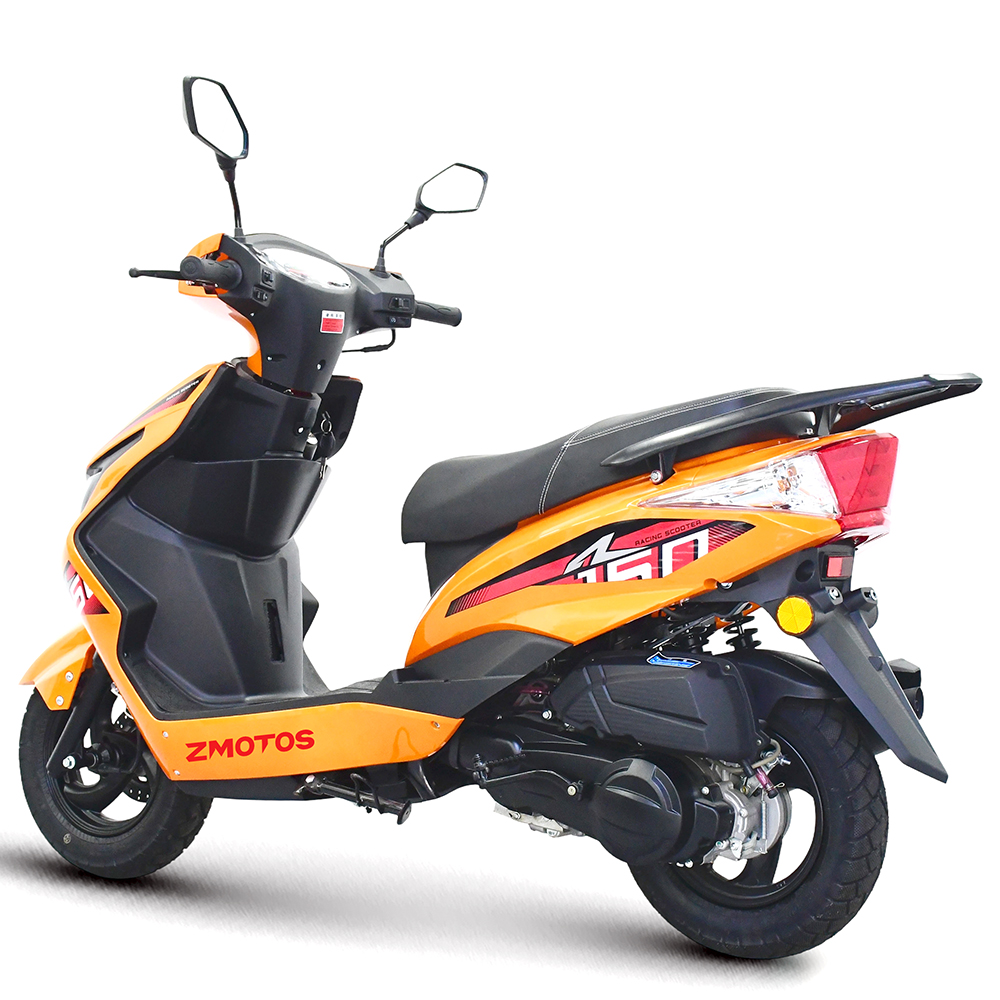

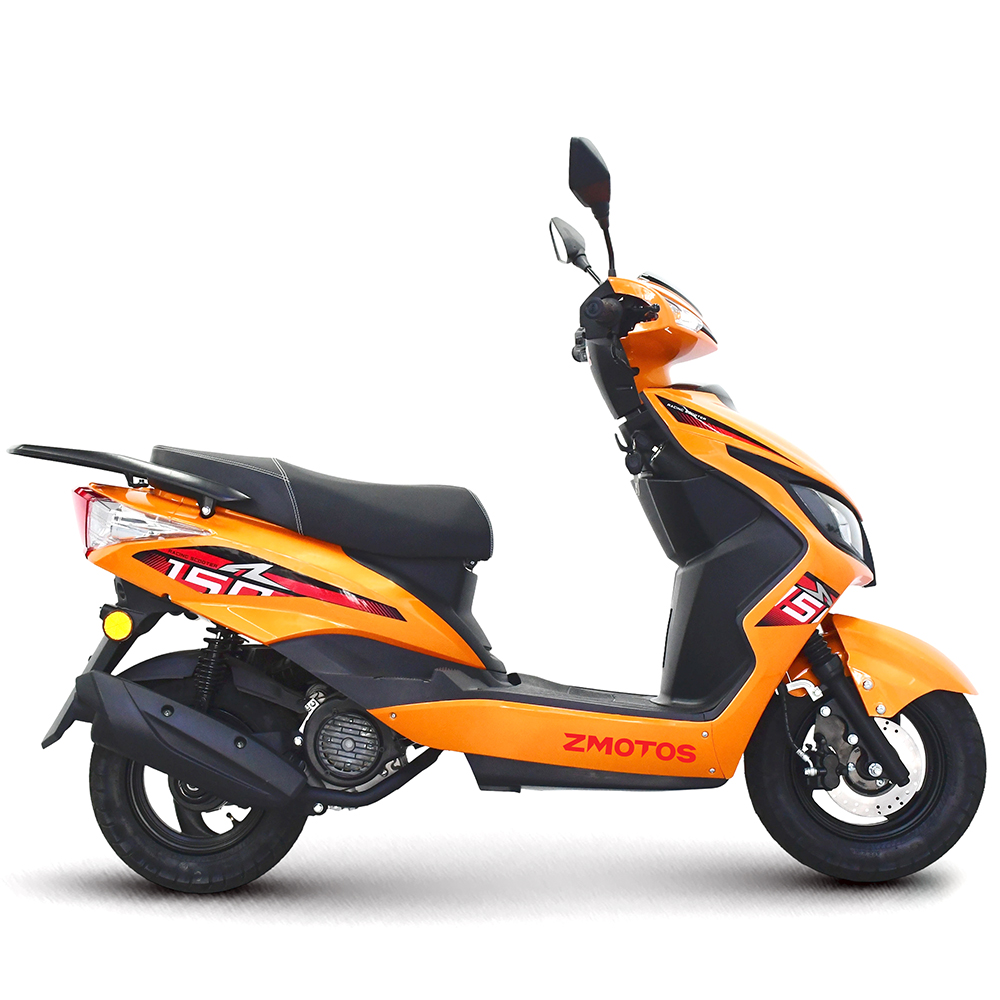

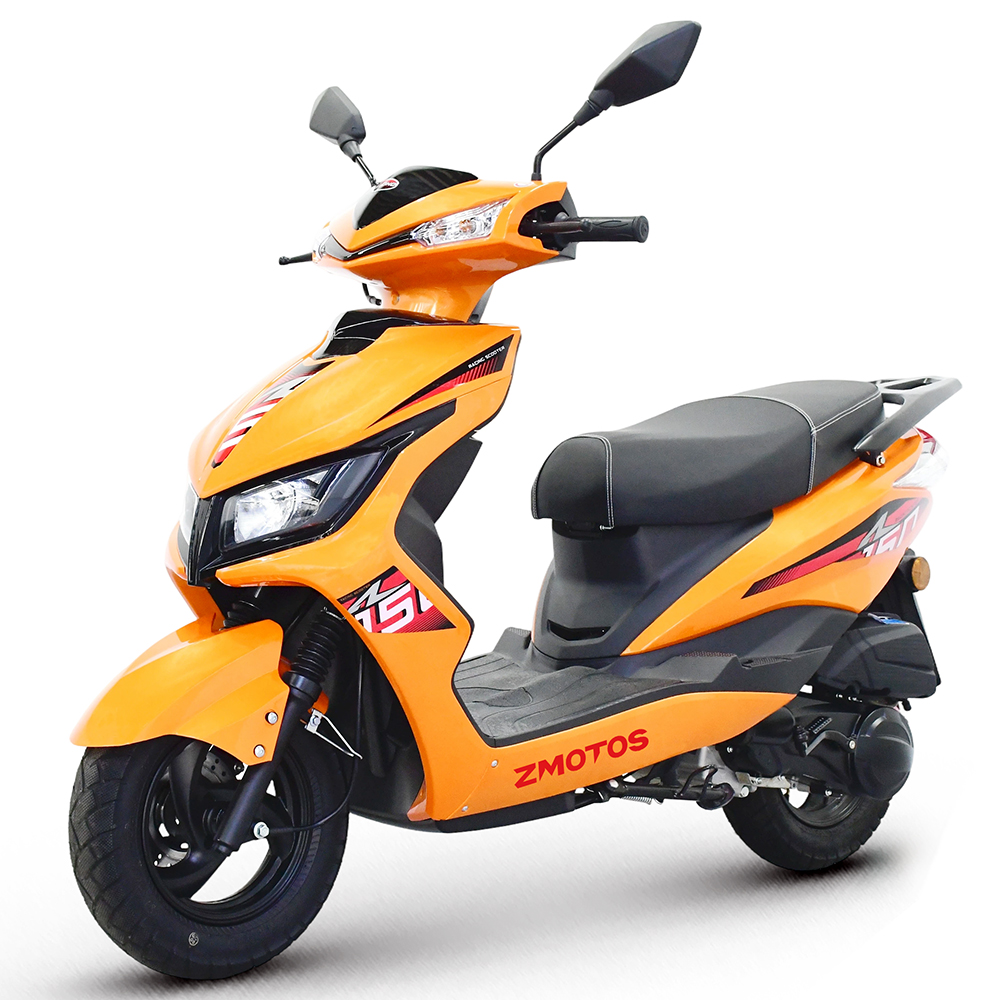

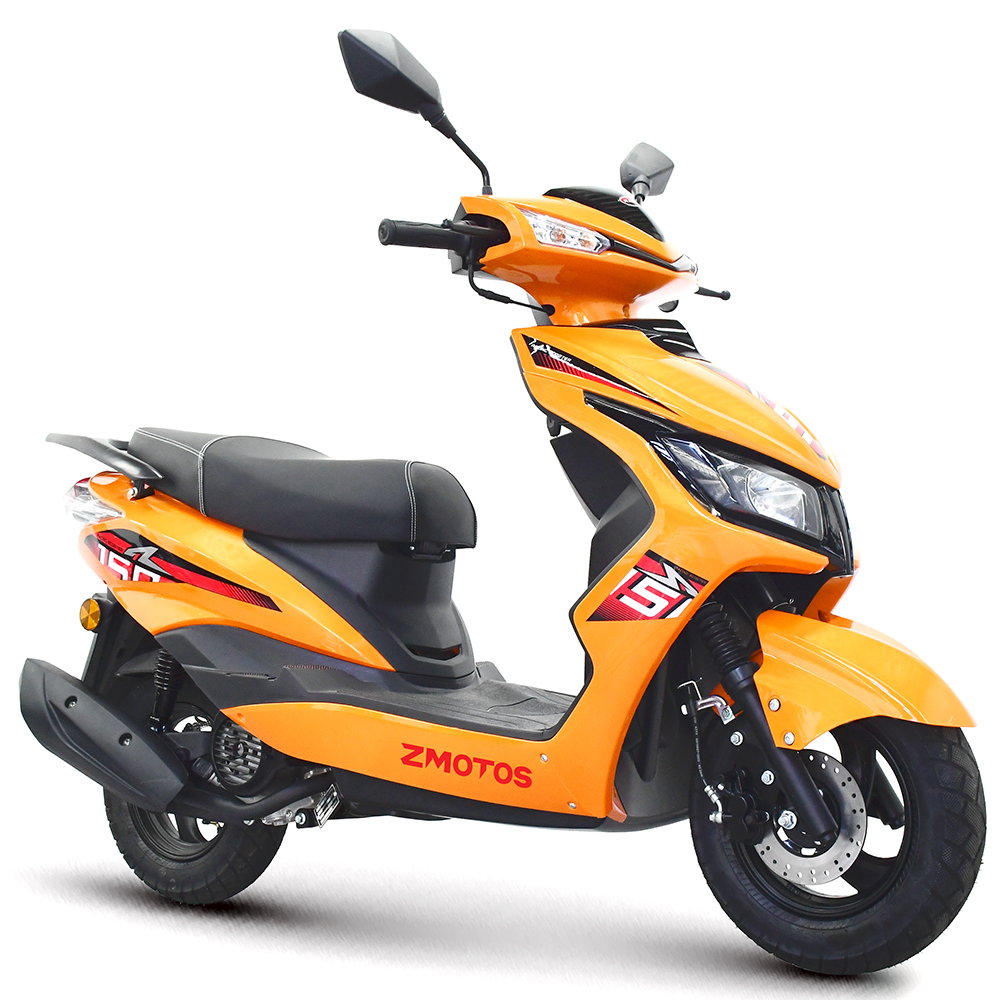

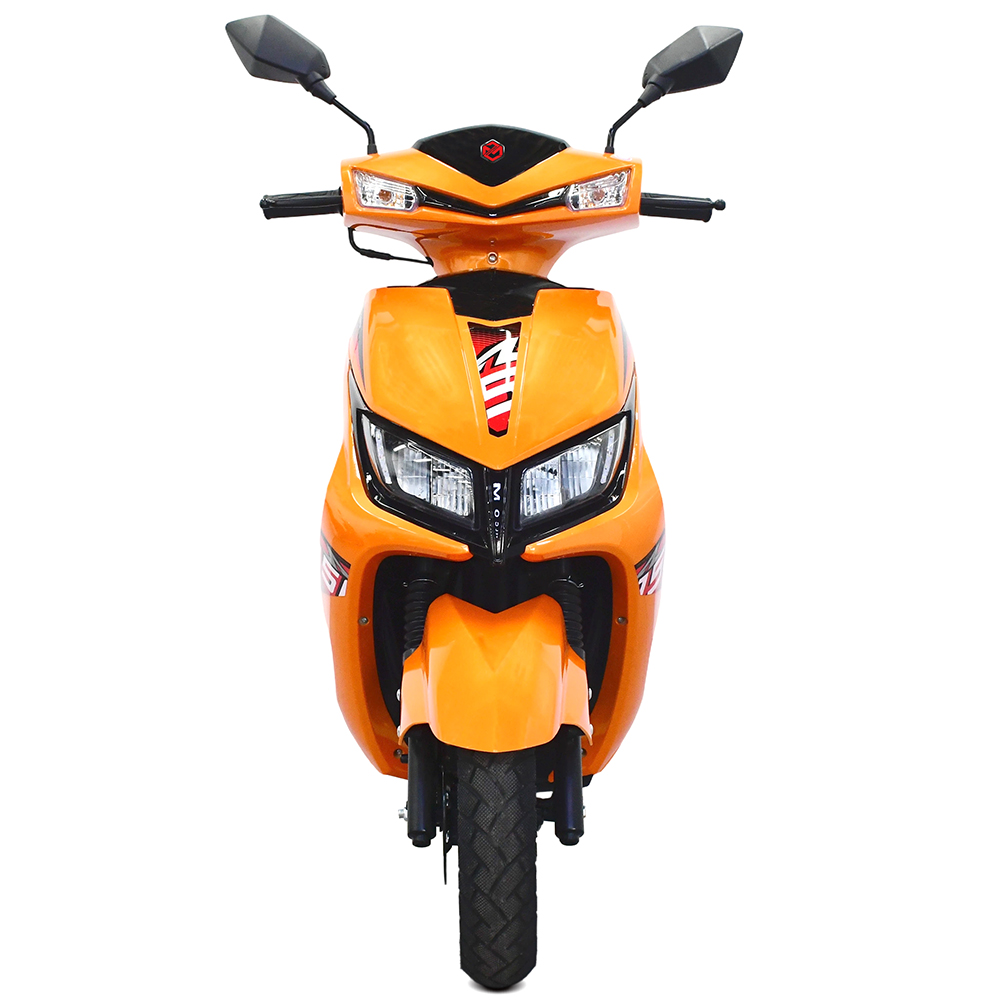

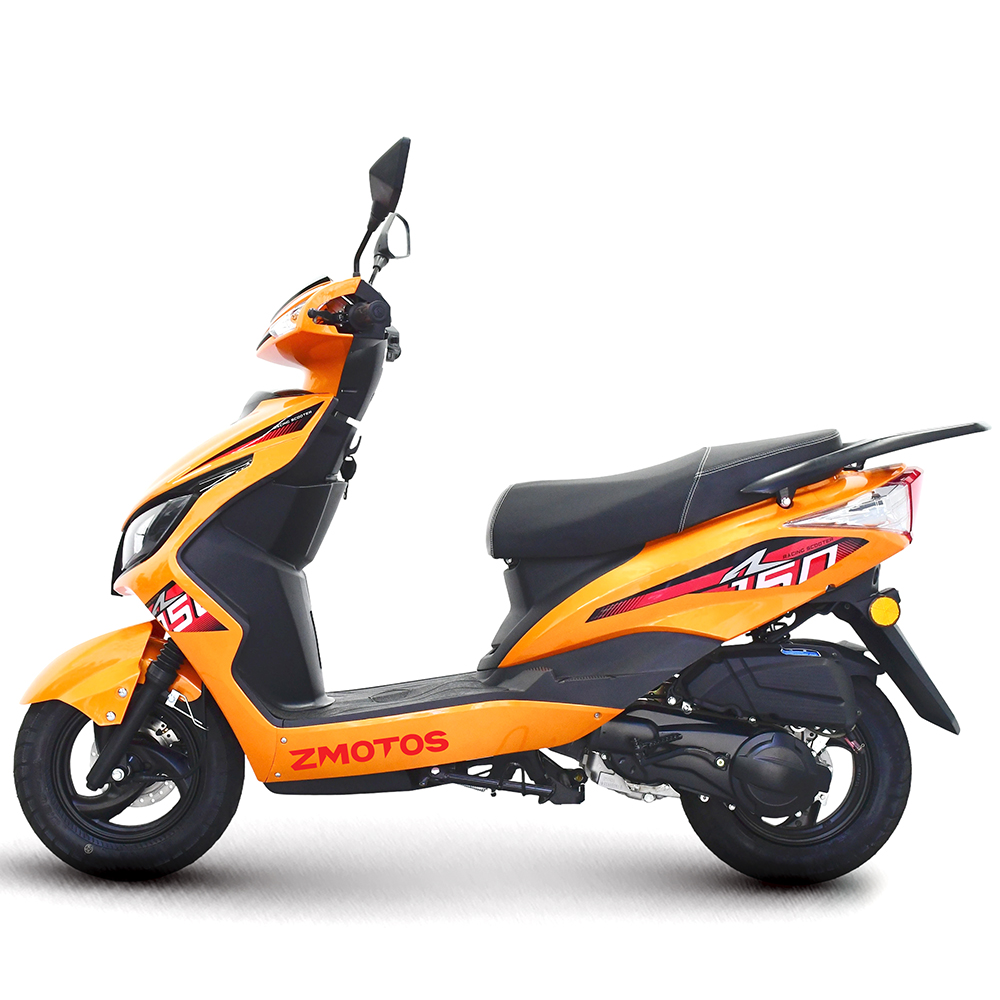

TZM150G-10

Engine model

157QMJ

Dimension

1840*690*1110mm

Cylinder

Single

Wheel Base

1250mm

Valve

4 stroke

Ground clearance

110 mm

Cooling Type

Air-cooling

Seat Height

730 mm

Bore* Stroke

57.4*57.8mm

Dry weight

85 kg

Displacement

149.5 ml

Max. load

150 kg

Starter

Electrical/Kick

Max. speed

85 km/h

Ignition

Transistor

Front brake

Disc /Hand

Rated power

7.0 Kw 7500±500 r/min

Rear brake

Drum /Hand

Max. Torque

9.8 Nm 6000±500 r/min

Transmission

Belt +Shaft

Fuel consumption

2.6 L/100KM

Tire

350-10 tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Packing size

1700*570*860mm

Qty in container

26/20GP, 56/40GP, 84/40HQ

M.O.Q

26 units
