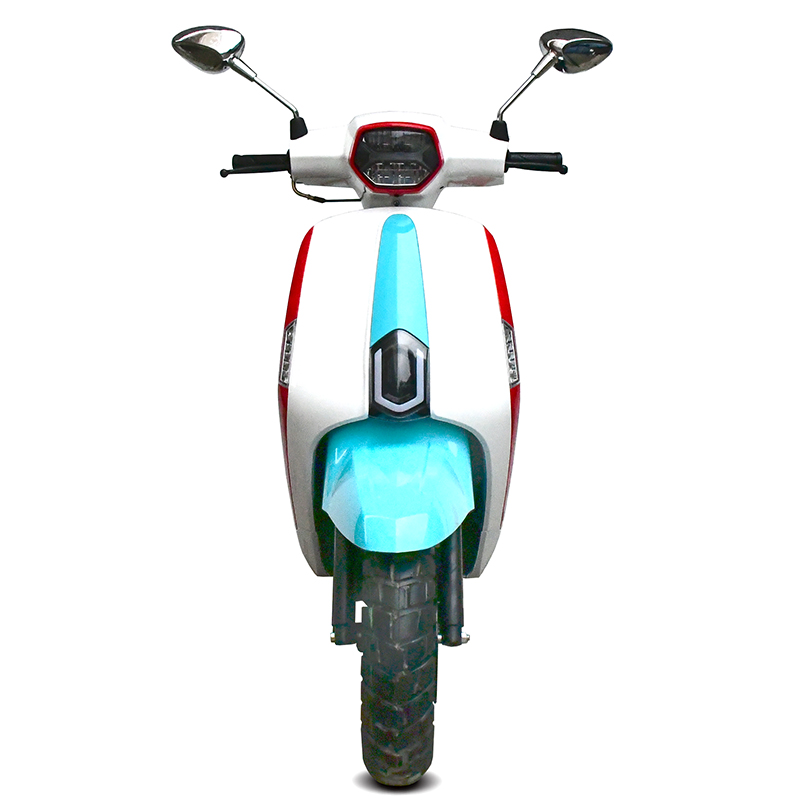

TZM150H-7

Engine model

157QMJ

Dimension

1950*870*1350mm

Cylinder

Single

Wheel Base

1360mm

Valve

4 stroke

Ground clearance

170 mm

Cooling Type

Air-cooling

Seat Height

760 mm

Bore* Stroke

57.4*57.8mm

Dry weight

95 kg

Compression ratio

9.2:1

Max. load

150 kg

Displacement

149.5 ml

Max. speed

85 km/h

Starter

Electrical/Kick

Fuel Tank Capacity

5.5 L

Ignition

C.D.I

Clutch type

Automatic

Rated power

7.0 Kw 7500±500 r/min

Brake (Fr./Rr.)

Disc/Hand, Drum/Hand

Max. Torque

9.8 Nm 6000±500 r/min

Transmission

Belt + Shaft

Fuel consumption

2.6L/100KM

FR & RR Tire

120/70-12 Tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Carton with iron bracket

Packing size

1880*570*860mm

1950*570*1150mm

Qty in container

24/20GP, 50/40GP, 75/40HQ

24/20GP, 48/40GP

M.O.Q

24   units (Black/Blue/White/Red/Gray/Green,etc)

24   units
