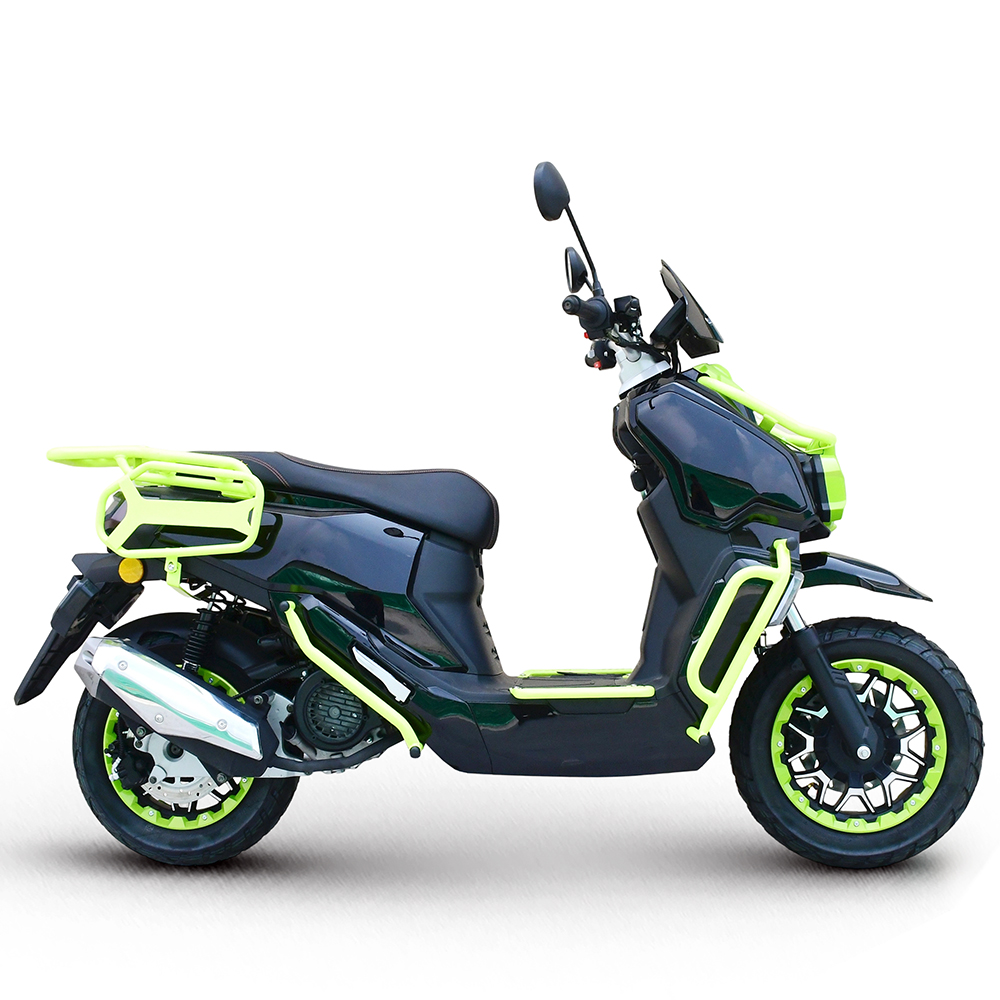

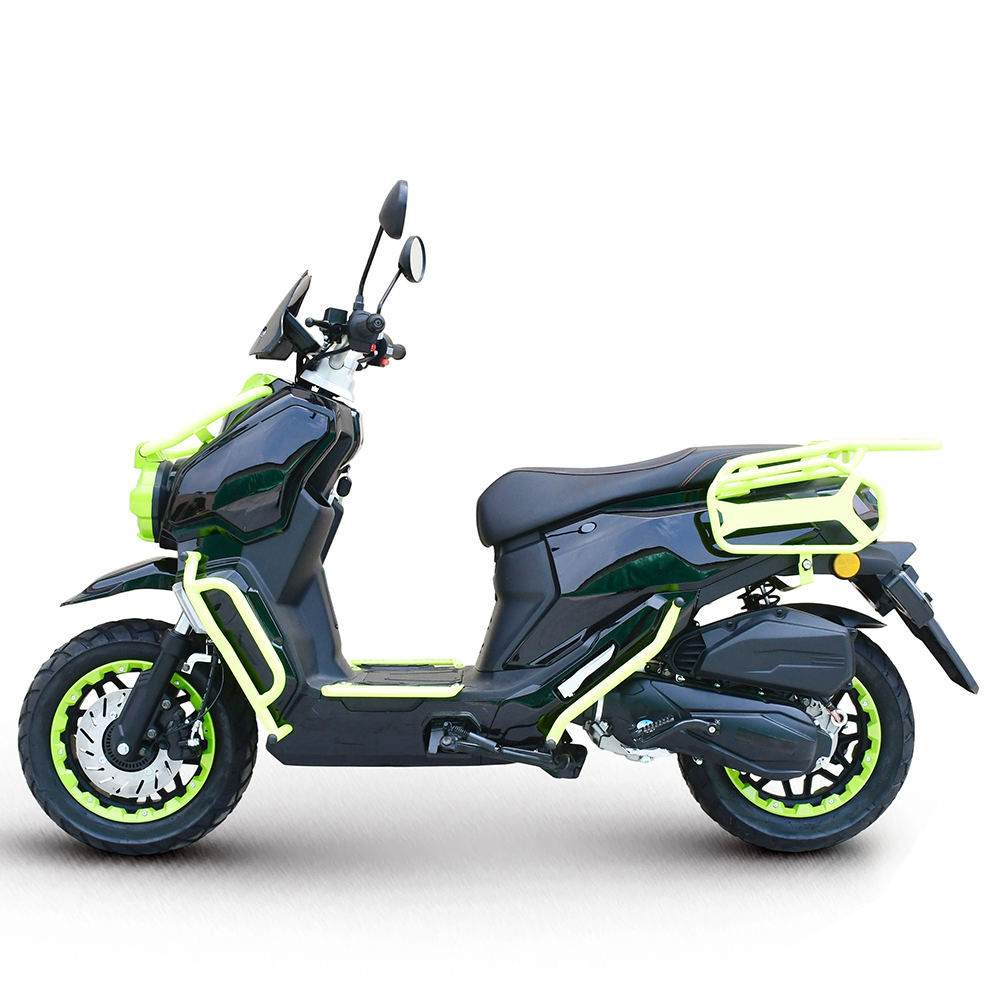

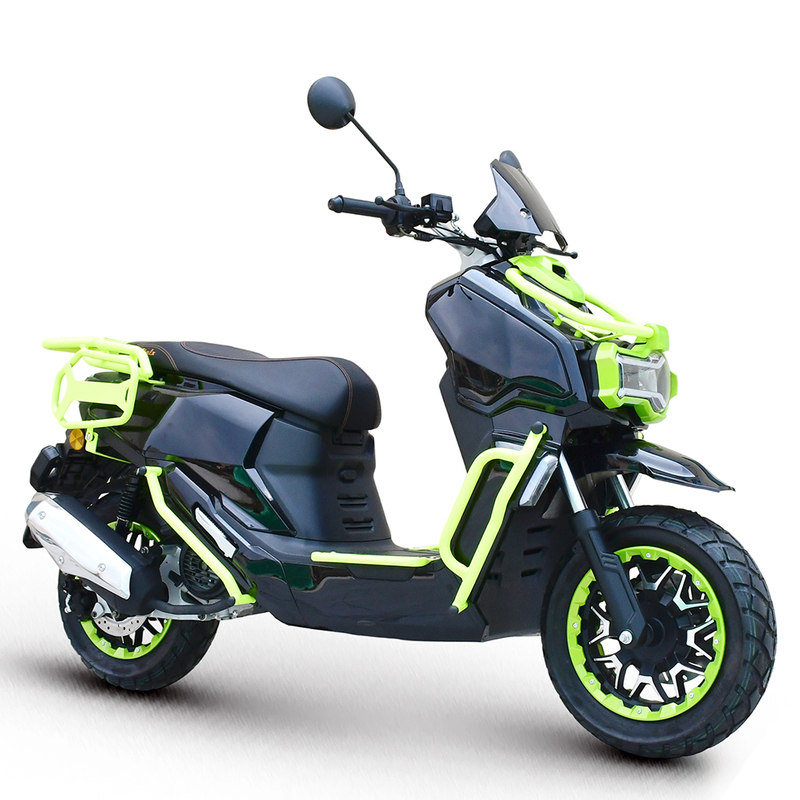

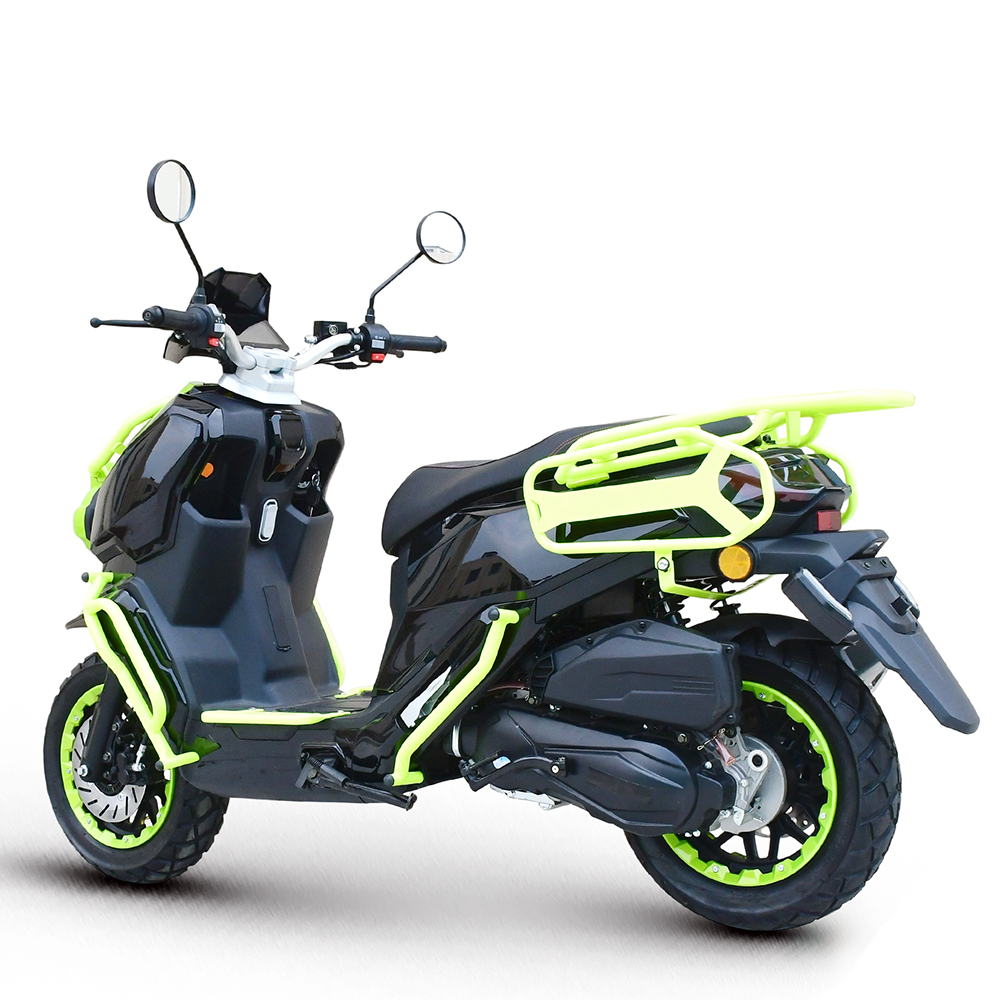

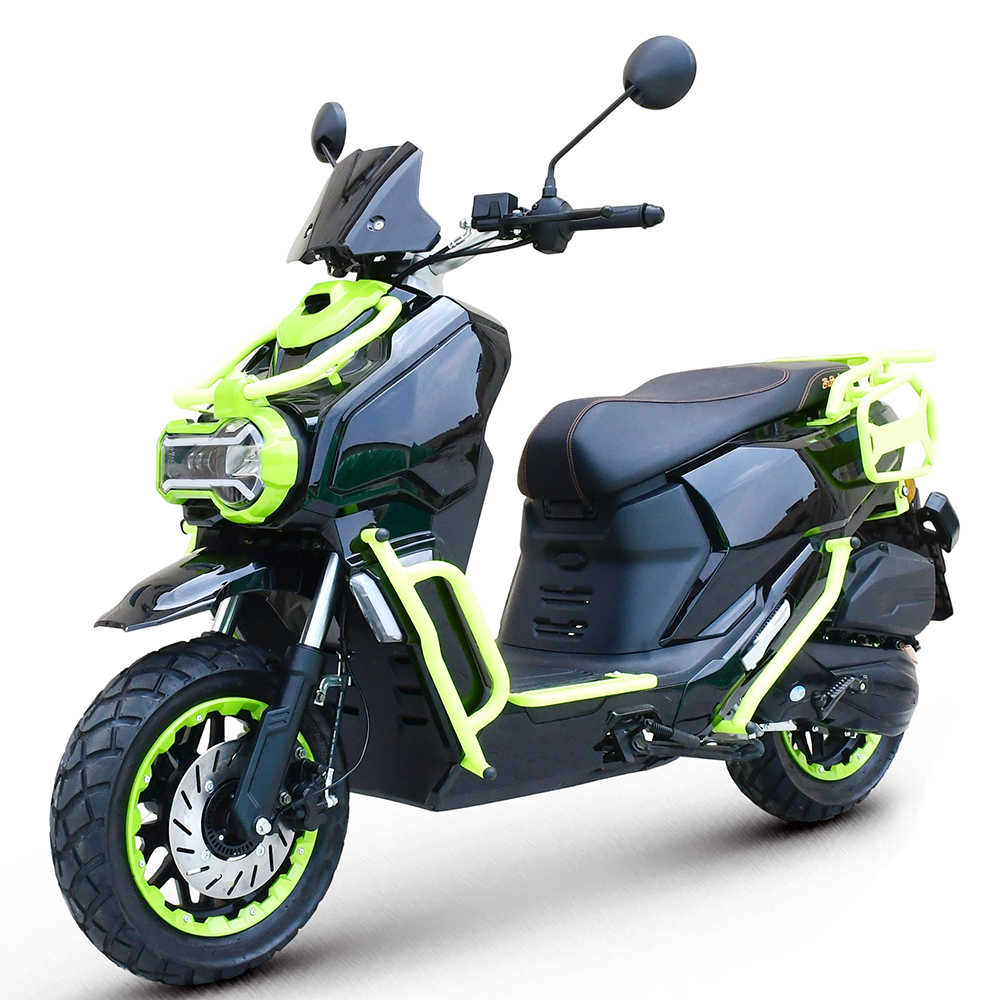

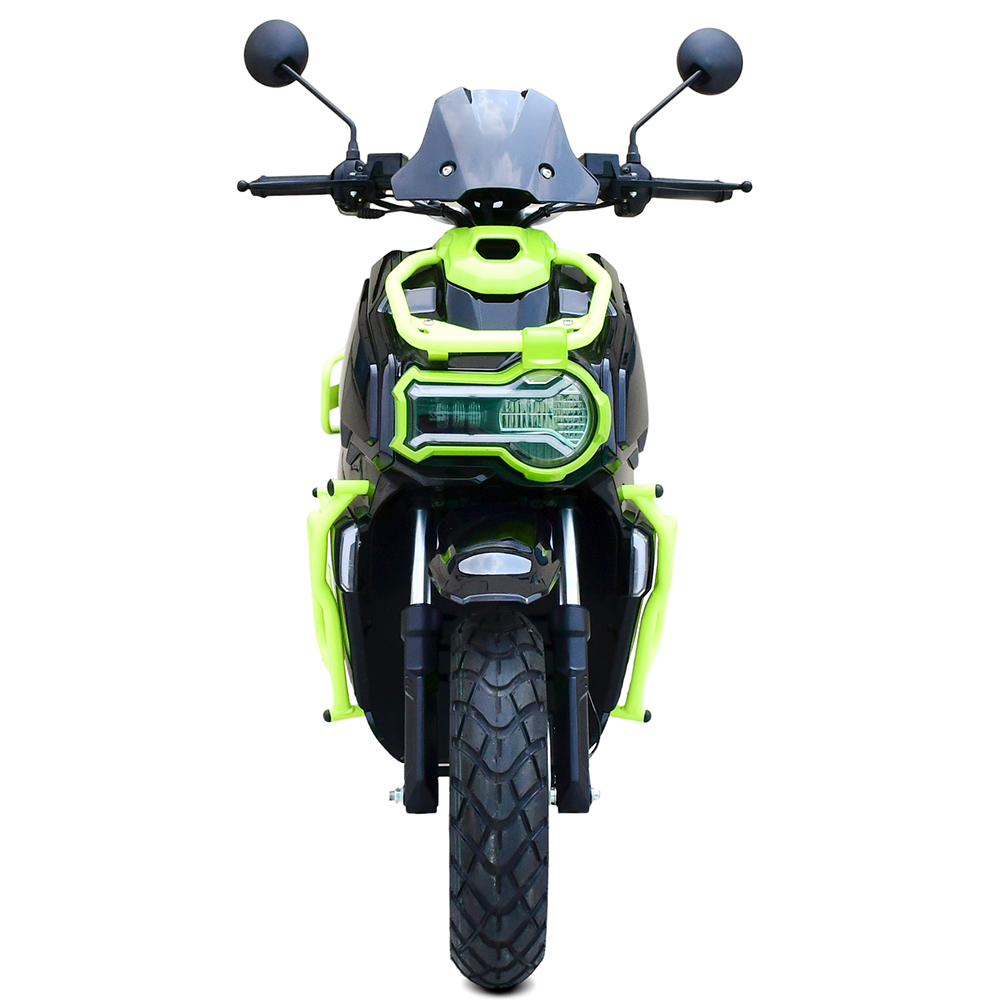

TZM150L-12E

Engine model

157QMJ

Dimension

1920*720*1160mm

Cylinder

Single

Wheel Base

1300mm

Valve

4 stroke

Ground clearance

160 mm

Cooling Type

Air-cooling

Seat Height

780 mm

Bore* Stroke

57.4*57.8mm

Dry weight

94 kg

Compression ratio

9.2:1

Max. load

150 kg

Displacement

149.5 ml

Max. speed

85 km/h

Starter

Electrical/Kick

Fuel Tank Capacity

6.5 L

Ignition

Transistor

Clutch type

Automatic

Rated power

7.0 Kw 7500±500 r/min

Brake (Fr./Rr.)

Disc/Hand, Drum/Hand

Max. Torque

9.8 Nm 6000±500 r/min

Transmission

Belt + Shaft

Fuel consumption

2.6L/100KM

FR & RR Tire

120/70-12 Tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Carton with iron bracket

Packing size

1800*570*860mm

1880*570*1150mm

Qty in container

24/20GP, 50/40GP, 75/40HQ

24/20GP, 50/40GP

M.O.Q

24 units

24 units
