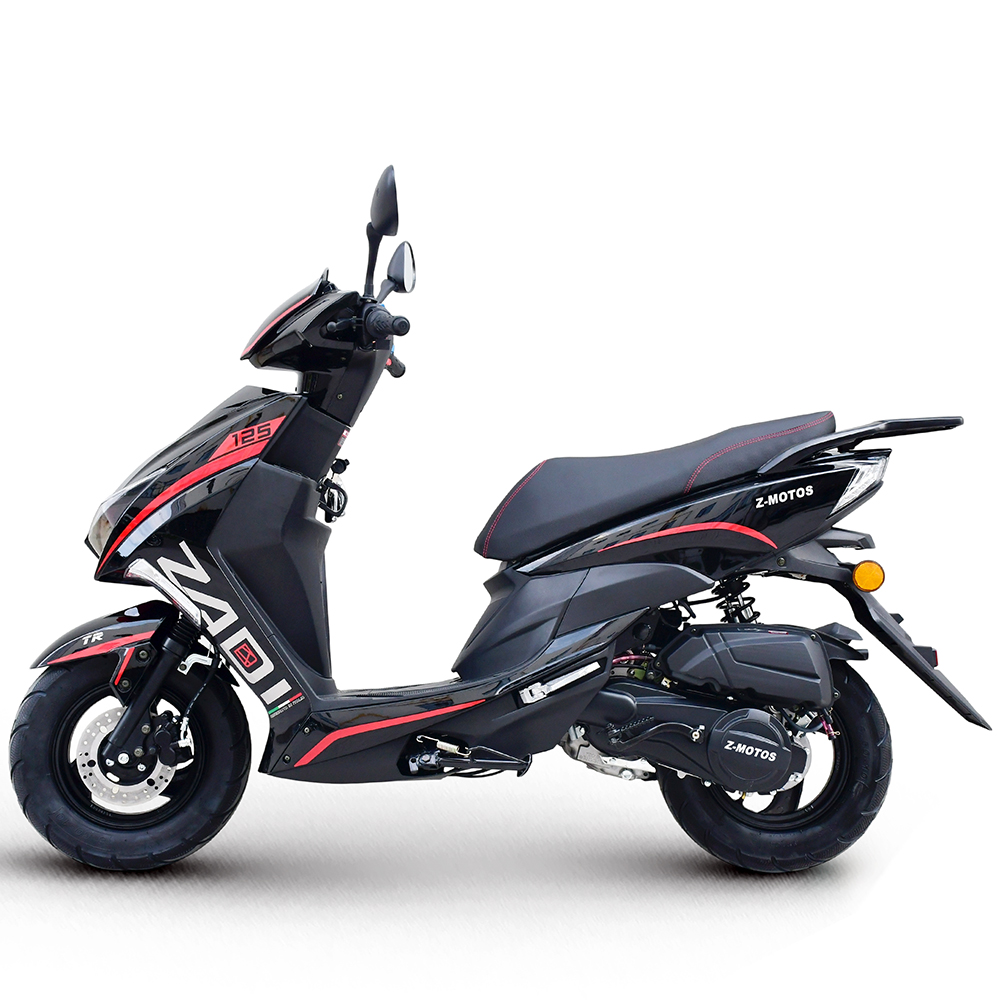

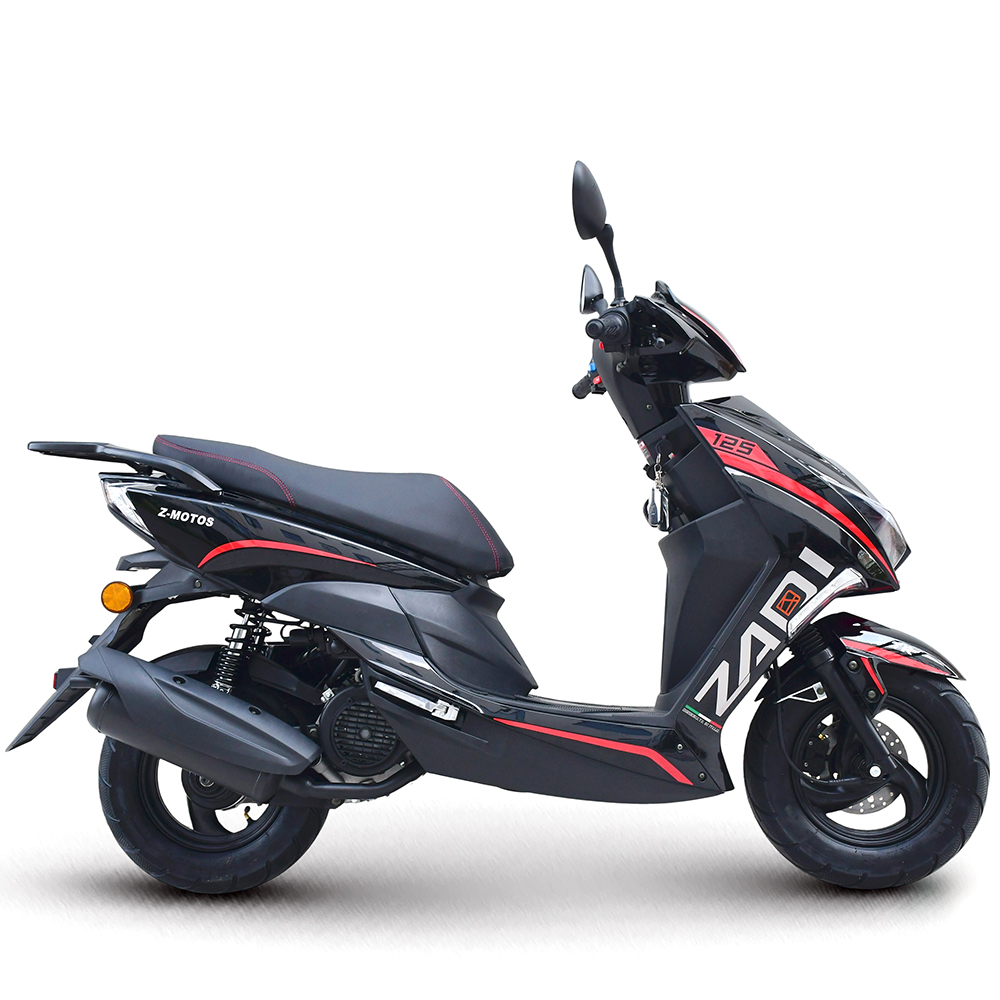

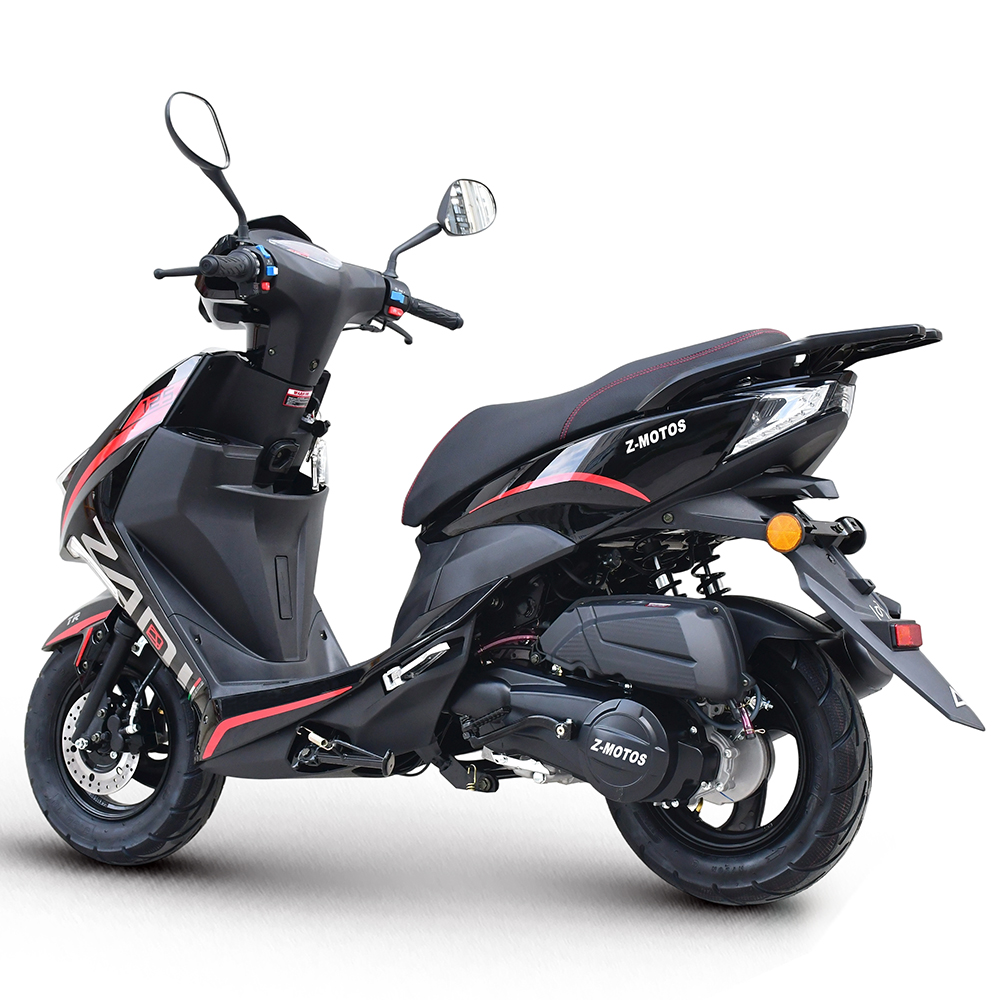

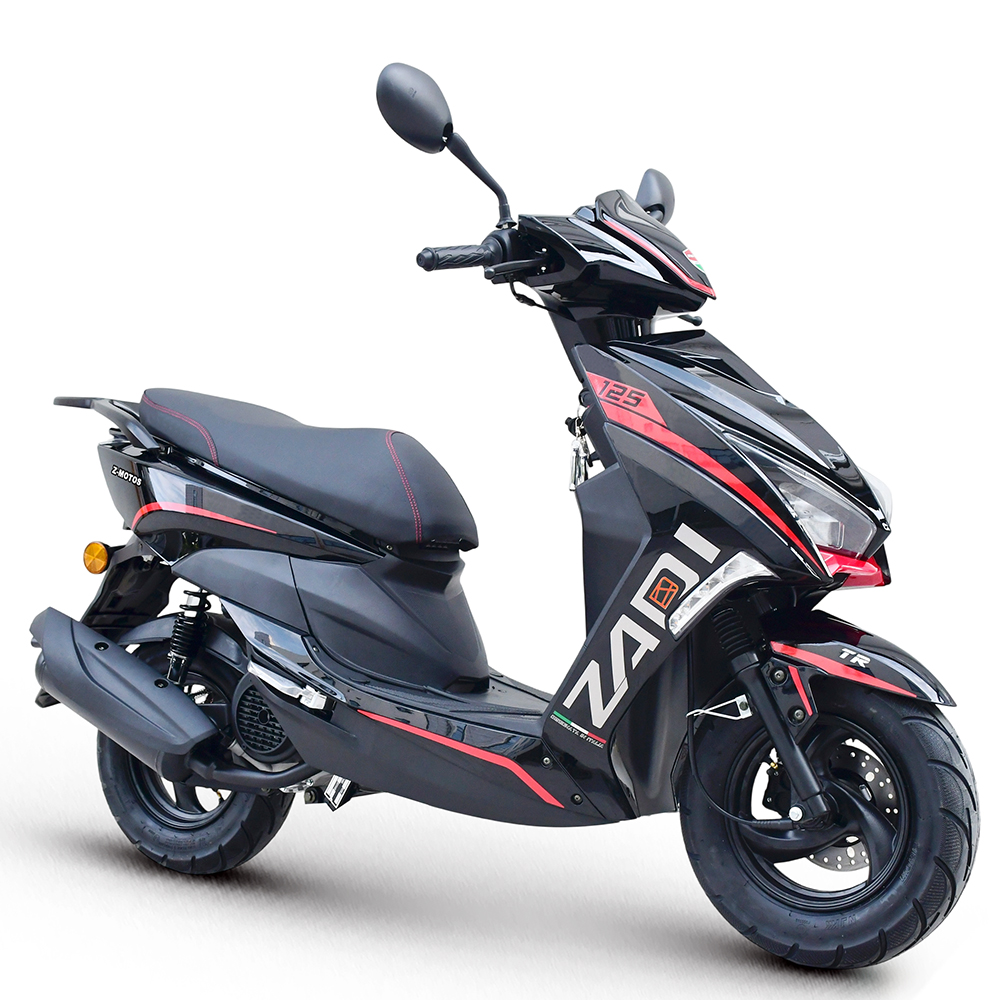

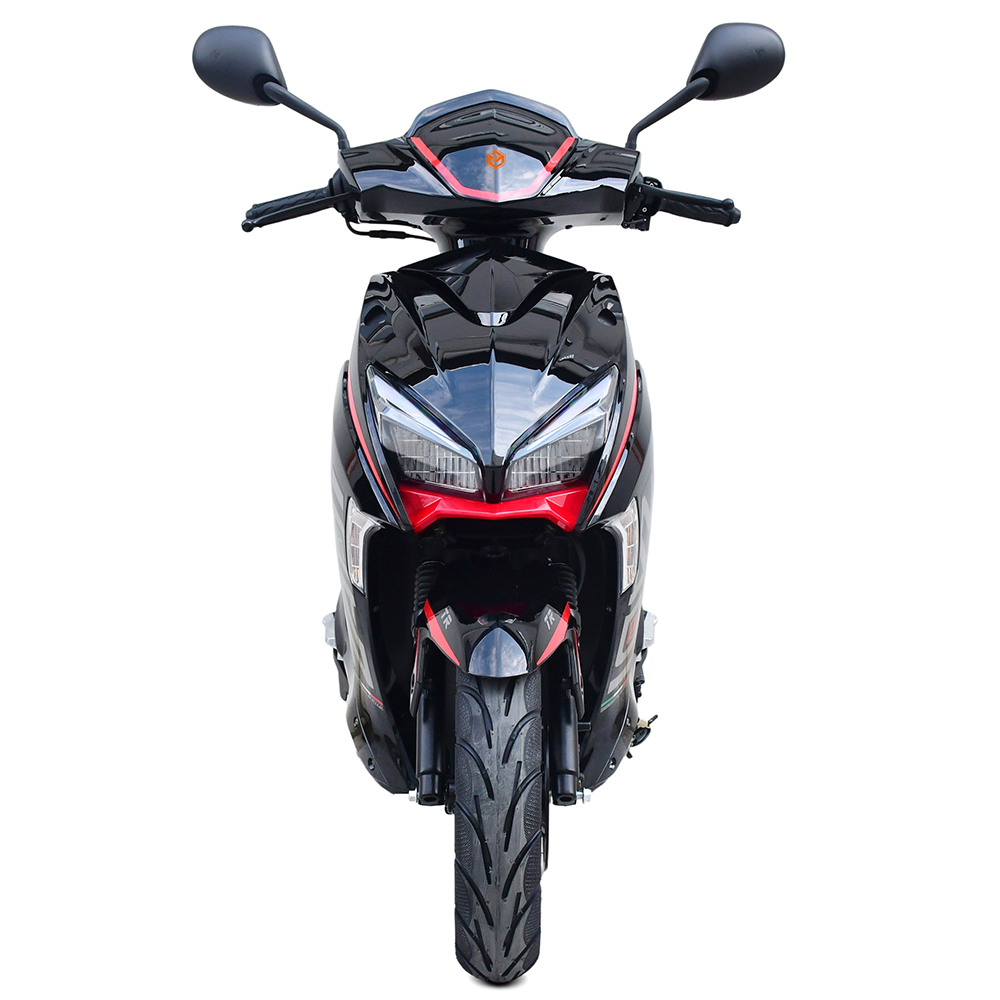

TZM150N-3B

Engine model

157QMJ

Dimension

1880*690*1140 mm

Cylinder

Single

Wheel Base

1260 mm

Valve

4 stroke

Ground clearance

140 mm

Cooling Type

Air-cooling

Seat Height

760 mm

Bore* Stroke

57.4*57.8mm

Dry weight

98 kg

Displacement

9.2:1

Max. load

150 kg

Starter

149.5 ml

Max. speed

85km/h

Ignition

Electrical/Kick

Front brake

Disc /Hand

Rated power

Transistor

Rear brake

Drum /Hand

Max. Torque

7.0 Kw 7500±500 r/min

Transmission

Shaft+belt / Automatic Clutch

Fuel consumption

2.6 L/100KM

Wheel &Tire

Alloy wheels/350-10 Tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Packing size

1700*570*840 mm

Qty in container

26/20GP, 56/40GP, 84/40HQ

M.O.Q

26 units
