TZM150T-12A
ZMOTOS

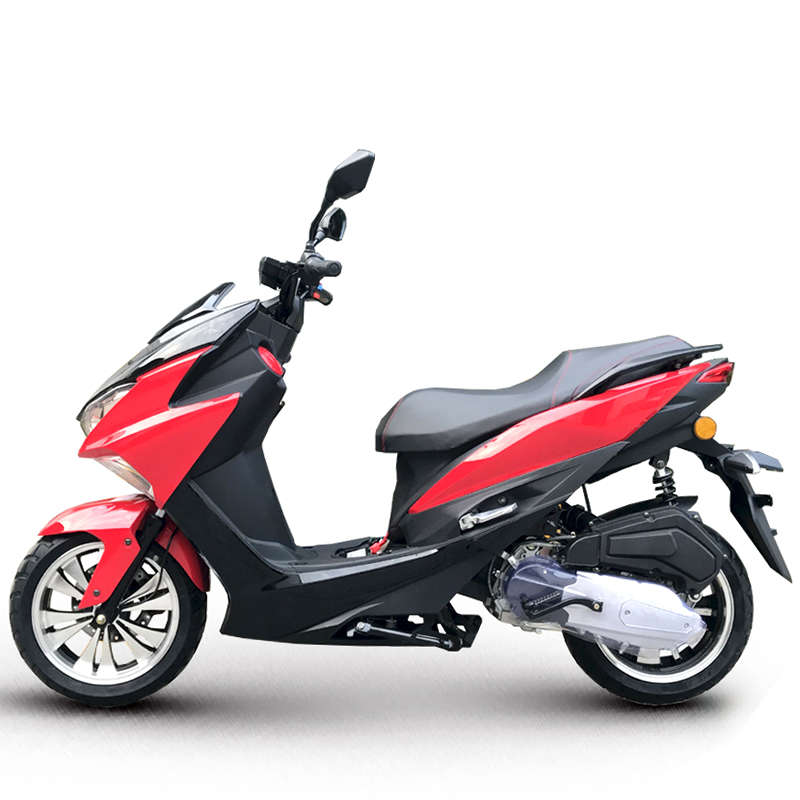

TZM150T-12A 125cc/150cc Scooter
150cc Air-cooled engine,
Alloy wheels, 130/60-13 Tires,
Front & rear disc brake,
Double rear shock absorber,
LED headlights, LCD meter,
Small windshield, Alloy rear carrier,
Remote control.
Technical Specifications:
Engine
Frame
Engine model
157QMJ (XINBA BRAND)
Dimension
1950*670*1150mm
Cylinder
Single
Wheel Base
1300mm
Valve
4 stroke
Ground clearance
140 mm
Cooling Type
Air-cooling
Seat Height
790 mm
Bore* Stroke
57.4*57.8mm
Dry weight
104 kg
Displacement
149.5 ml
Max. load
150 kg
Starter
Electrical/Kick
Max. speed
85 km/h
Ignition
Transistor
Brake (Fr./Rr.)
Disc/Hand, Drum or Disc/Hand
Rated power
7.0 Kw 7500±500 r/min
Transmission
Belt + Shaft
Max. Torque
9.8 Nm 6000±500 r/min
FR & RR Wheel
13 inch Alloy Wheels
Fuel consumption
2.6L/100KM
FR & RR Tire
130/60-13 tubeless
Package
SKD
Packing status
Carton with iron bracket
Packing size
1880*570*860mm
Qty in container
24/20GP, 50/40GP, 75/40HQ
M.O.Q
24 units
Detailed Pictures:
