TZM110N-3 (TZM100N-3)

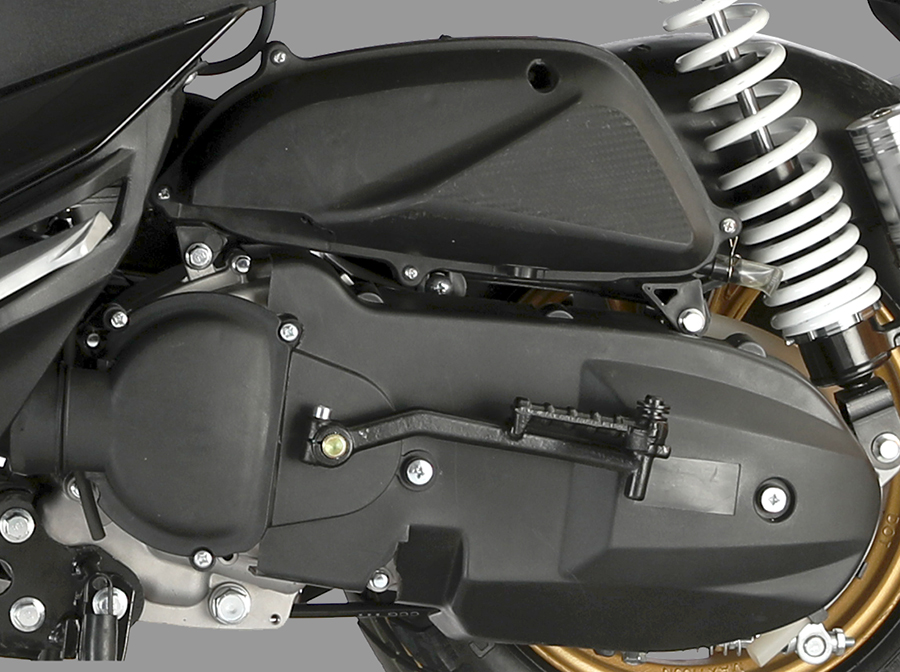

Engine model

1P51QMH

Dimension

1880*690*1140mm

Cylinder

Single

Wheel Base

1260mm

Valve

4 stroke

Ground clearance

140 mm

Cooling Type

Air-cooling

Seat Height

760 mm

Bore* Stroke

51.0*54mm

Dry weight

95 kg

Displacement

110.3 ml

Max. load

150 kg

Starter

Electrical/Kick

Max. speed

80 km/h

Ignition

Transistor

Front brake

Disc /Hand

Rated power

5.5 kw 8000±500 r/min

Rear brake

Drum /Hand

Max. Torque

7.8 N.m 6500±500 r/min

Transmission

Belt +Shaft

Fuel consumption

2.2 L/100KM

Tire

350-10 tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Packing size

1700*570*860mm

Qty in container

26/20GP, 56/40GP, 84/40HQ

M.O.Q

26 units
