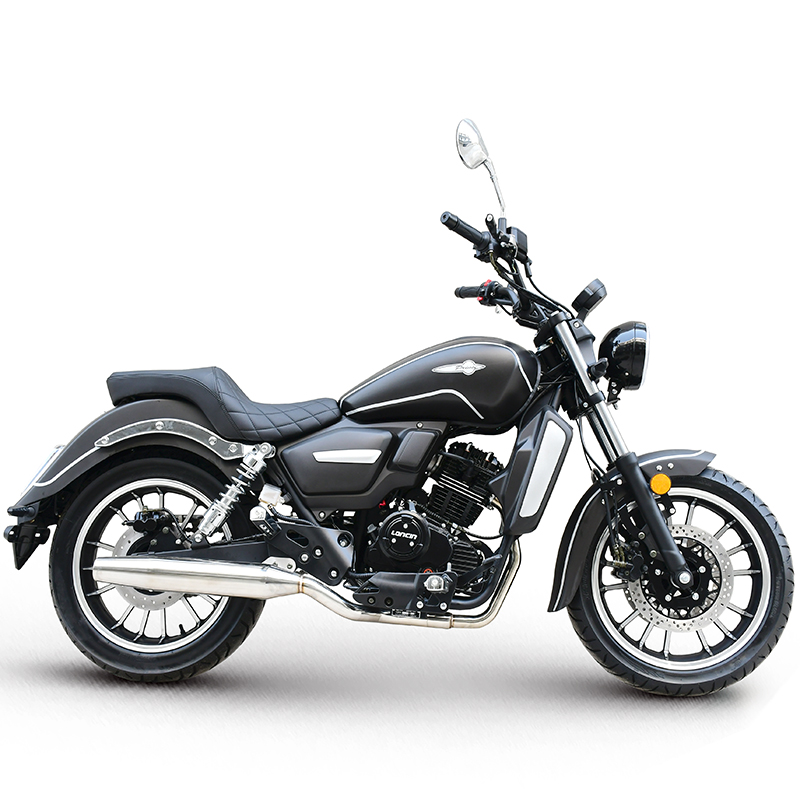

CZM250G-5
Z-MOTOS
This cruiser can use 150cc, 200cc and 250cc balance shaft engines.
The most popular options are front bumper, big rear carrier, rear side boxes, Front decorative lamps and remote control ect.
Technical specifications
Engine
Frame
Engine model
165FMM balance shaft
Dimension
2200*950*1100mm
Cylinder
Single
Wheel Base
1450 mm
Valve
4-stroke
Dry weight
155 kg
Cooling
Air-cooling
Max. load
160 kg
Bore* stroke
65.5 * 66.2mm
Max. speed
118 km/h
Displacement
223.4ml
Clutch type
Manual
Starter
Electrical
Brake(Fr./ Rr.)
Disc/Hand; Disc/Foot
Ignition
C.D.I
Tank Capacity
20 L
Rated power
11.5 kw 7500±500 r/min
Wheel
Alloy or spoke Wheel
Max.torque
17N.m 5500±500 r/min
Tyre size
120/70-17, 150/70-17
Package
CBU/SKD
CKD
Packing status
Carton with iron bracket
Carton with wooden bracket
Packing size
1980*570*870mm
Quantity in container
22/20GP, 48/40GP, 72/40HQ
M.O.Q
22 UNITS
