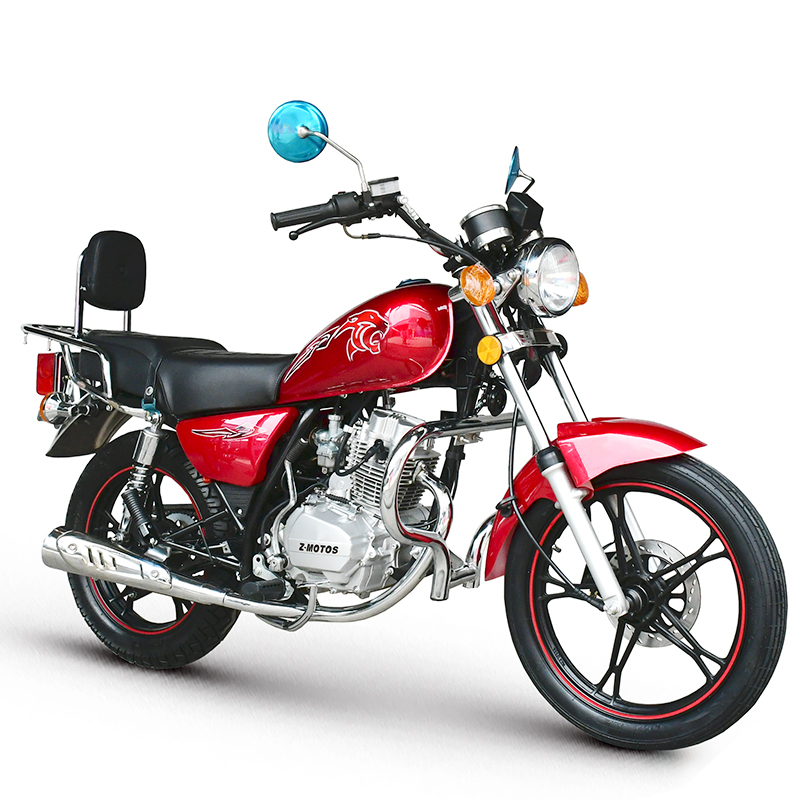

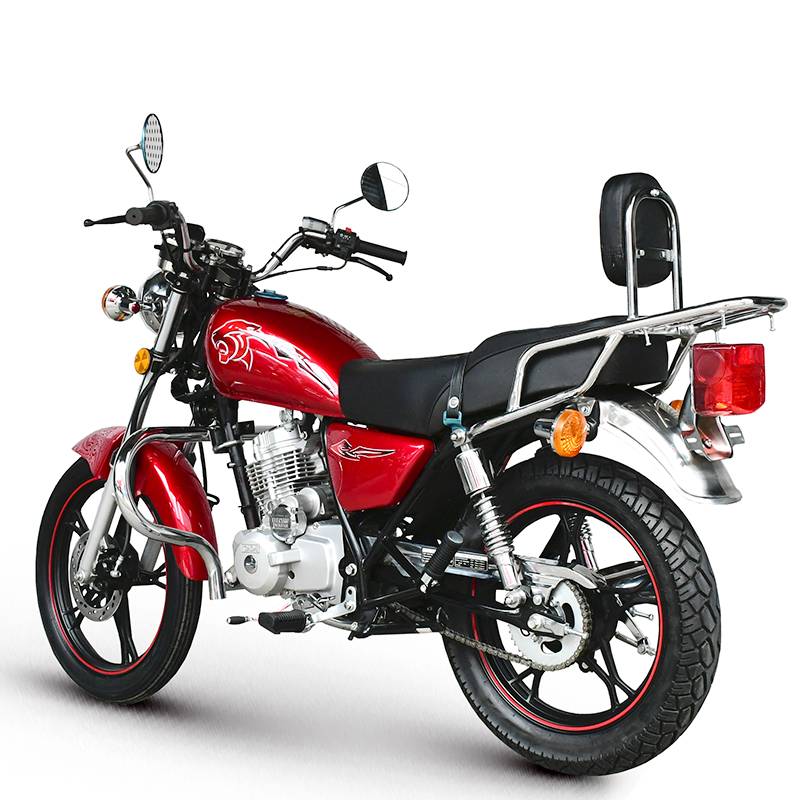

CZM150H-8
Z-MOTOS
This cruiser can use 150cc, 200cc and 250cc balance shaft engines.
The most popular options are front bumper, big rear carrier, rear side boxes, Front decorative lamps and remote control ect.
Technical specifications:
Engine
Frame
Engine model
162FMJ
Dimension
1940*750*1090 mm
Cylinder
One-Cylinders
Wheel Base
1350 mm
Valve
4-stroke
Ground clearance
160 mm
Cooling
Air-Cooled
Dry weight
115 kg
Bore* stroke
62 *49.5mm
Max. load
150 kg
Displacement
149.5 ml
Max. speed
100 km/h
Starter
Electrical / Kick Start
Seat height
810 mm
Ignition
C.D.I
Brake(Fr./Rr.)
FR. disc/Hand, RR. drum/Foot
Rated power
7.2 kw 9000±500 r/min
Transmission
428 Chain
Max.torque
8.0N.m 7500±500 r/min
Tank Capacity
9.5 L
Clutch type
Manual Wet Multi-Plate
Tire and tube
FR. 275-18, RR. 110/90-16
Package
CBU/SKD
CKD
Packing status
Carton with iron bracket
Carton and Plywood box
Packing size
1700*460*860mm
1270*760*435 (body parts)
Quantity in container
32/20GP, 70/40GP, 105/40HQ
57/20GP, 145/40HQ
M.O.Q
32 UNITS
56 units
