TZM50B-2

50cc Scooter

  • TZM50B-1

  • ZMOTOS

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Motorcycle scooter motobike 50cc motorcycle 50cc scooter 50cc motorbike 50cc motor 50cc cheap scooter chinese scooter 50cc chinese scooter
Product Description
Specifications
Detailed Pictures

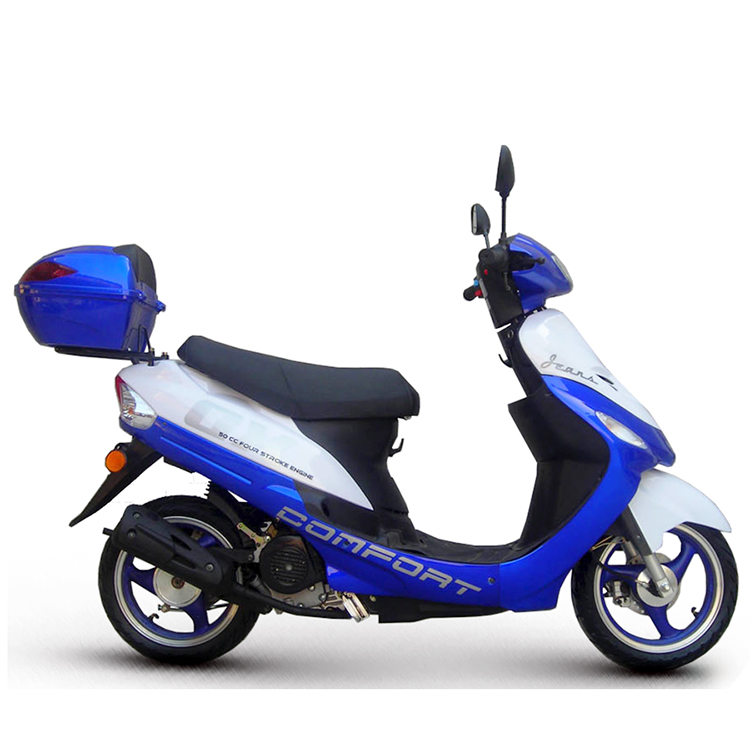

TZM50B-2 50cc Scooter


Engine: 50-80cc Air-cooled Engine

Wheel&Tire: Alloy wheel with 350-10 tire

Brake: Front disc and rear drum brake

Suspension: Double rear shock absorbers

Headlight: LED bulb

Dashboard: Mechanical meter

Optional: Steel carrier, Remote control, Rear box


Technical Specifications:

Engine

Frame

Engine model

139QMB (1P39QMB)

Dimension

1680*640*1040mm

Cylinder

single

Wheel base

1210mm

Valve

4 stroke

Ground clearance

140 mm

Cooling

air cooling

Seat Height

730 mm

Bore* stroke

39*41.4mm

Dry weight

78 kg

Displacement

49.5ml

Max. load

75 kg

Starter

electrical

Max. speed

45km/h

Ignition

transistor

Clutch type

Automatic

Rated power

2.2 kw 8000±500   r/min

Brake (Fr./Rr.)

Disc/Hand; Drum/Hand

Max.torque

3.6 N.m 4500±500   r/min

Transmission

Belt + Shaft

Fuel consumption

1.9 L/100km

FR&RR Tire

350-10 or   100/60-12 tire

Package

SKD

CBU

Packing status

Carton with iron   bracket

Carton with iron   bracket

Packing size

1700*460*860mm

1730*530*1080mm

Quantity in container

32/20GP, 70/40GP, 105/40HQ

26/20GP, 54/40GP

M.O.Q

100 units

100 units



Detailed Pictures:
DSCN3953


Headlight


IMG_6699


DSCN3952


IMG_6645


DSCN3962
