TRM150L-12H（Tricycle）

Compared with our competitors, our product has three outstanding advantages:
1. Anti side sway frame effectively protects the service life of the rear axle and ensures smooth and safe turning.
2. High quality aluminum alloy high-speed wheels with excellent collision buffering performance.
3. Shock absorbers with damping function provide comfortable driving experience.

Model:
TRM150L-12H
Brand:
ZMOTOS, OEM
Code:
8711203000

Quantity:
Availability:





Inquire Add to Basket

three wheels triciclo Three wheel three wheeled tricycle Elderly commuting motoscooter 150cc scooters Gasoline tricycle tricycle scooter

Product Description

Specifications

Detailed Pictures

This model has the following multiple states for you to choose from:

1, Split engine without reverse gear;
2, Split engine cable reverse gear,
3, Integrated engine without reverse gear;
4, Integrated engine cable reverse gear,
5, Integrated engine mechanical reverse gear,
Rear box/Bluetooth MP3/ Bumper/NFC are optional.

Technical Specifications

Engine		Frame
Engine model	157QMJ	Dimension	19808101130mm
Cylinder	Single	Wheel Base	1300mm
Valve	4 Stroke	Ground clearance	140 mm
Cooling Type	Air-cooling	Seat Height	780 mm
Bore* Stroke	57.4*57.8mm	Dry weight	145 kg
Displacement	149.5 ml	Max. load	150 kg
Starter	Electrical	Max. speed	80km/h
Ignition	C.D.I	Front brake	Disc /Hand
Rated power	7.8 Kw 7500±500 r/min	Rear brake	Disc /Hand
Max. Torque	10 Nm 6000±500 r/min	Front & rear tires	120/70-12 & 350-10
Transmission	Belt +Shaft	Rear wheel Track	645 mm
Fuel consumption	2.7 L/100KM	Fuel tank Capacity	7 L
Package	SKD		CBU
Packing status	Carton with iron bracket
Packing size	1690730850mm
Qty in container	20/20GP, 42/40GP, 63/40HQ
MOQ	30 units

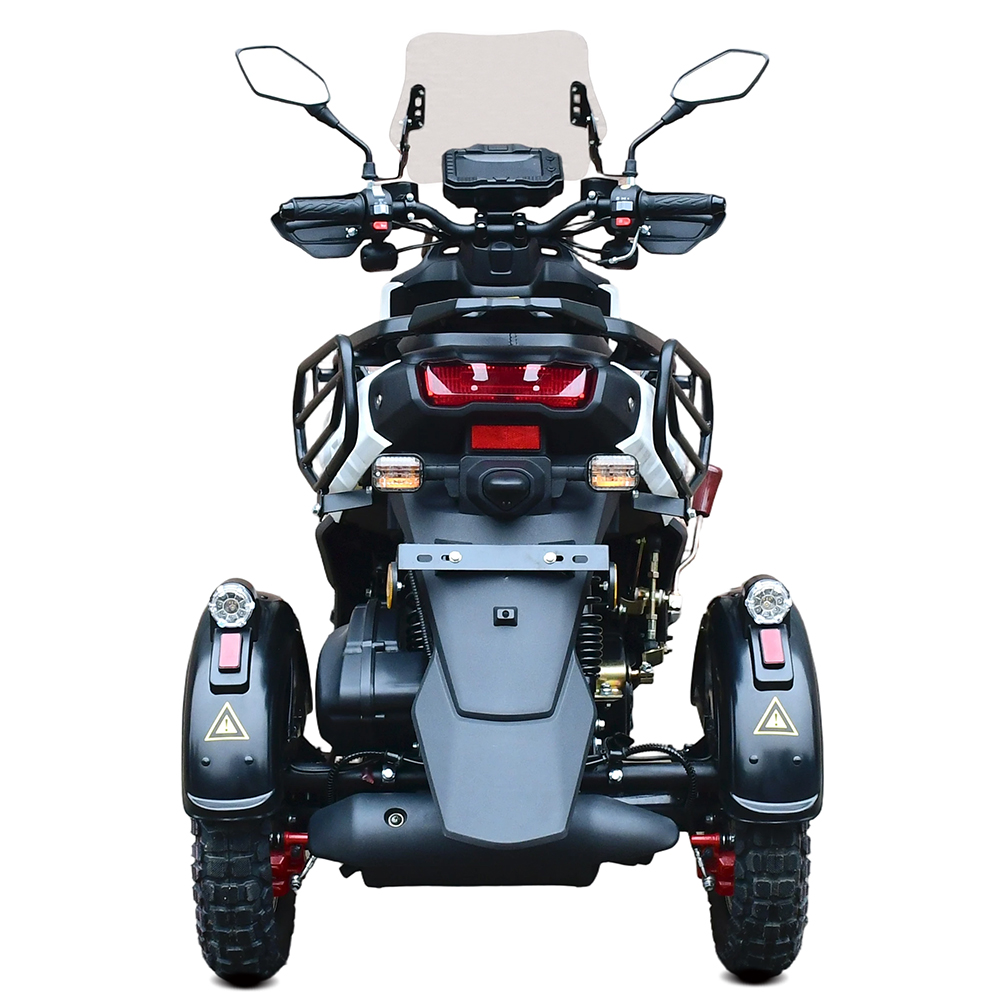

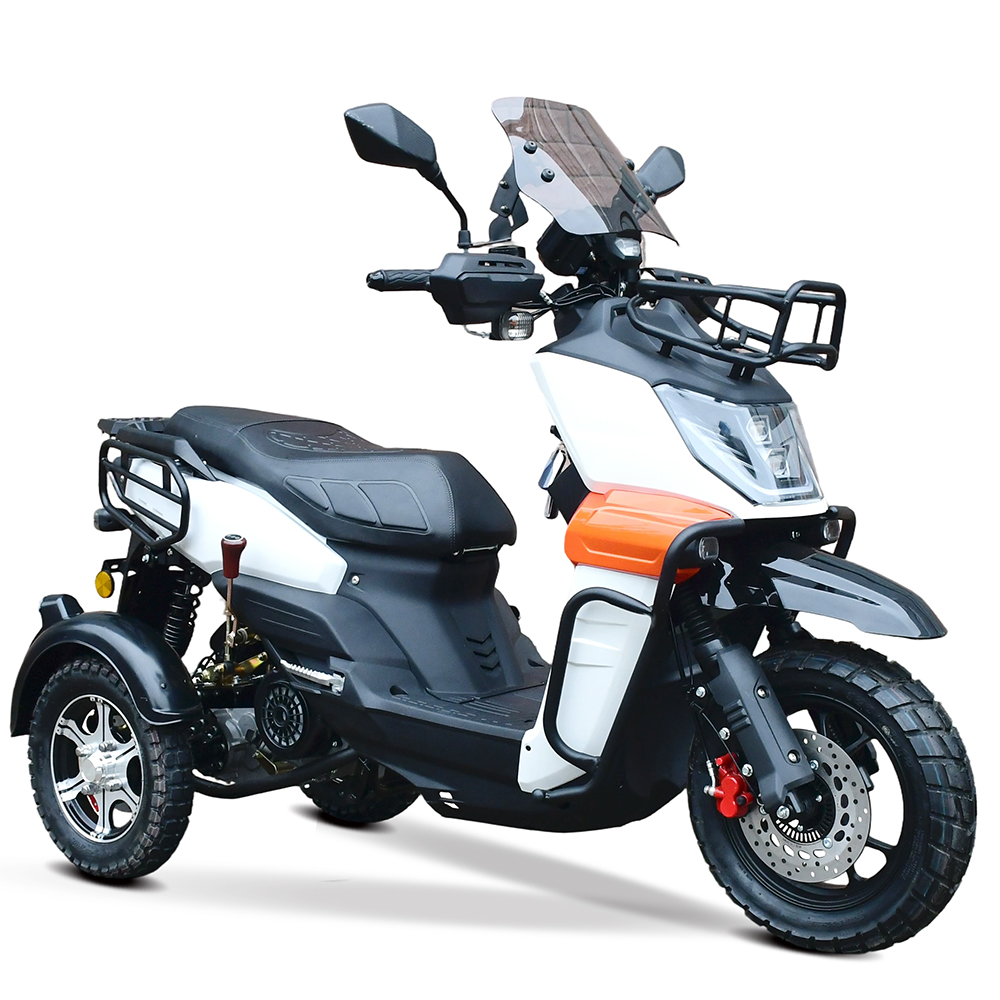

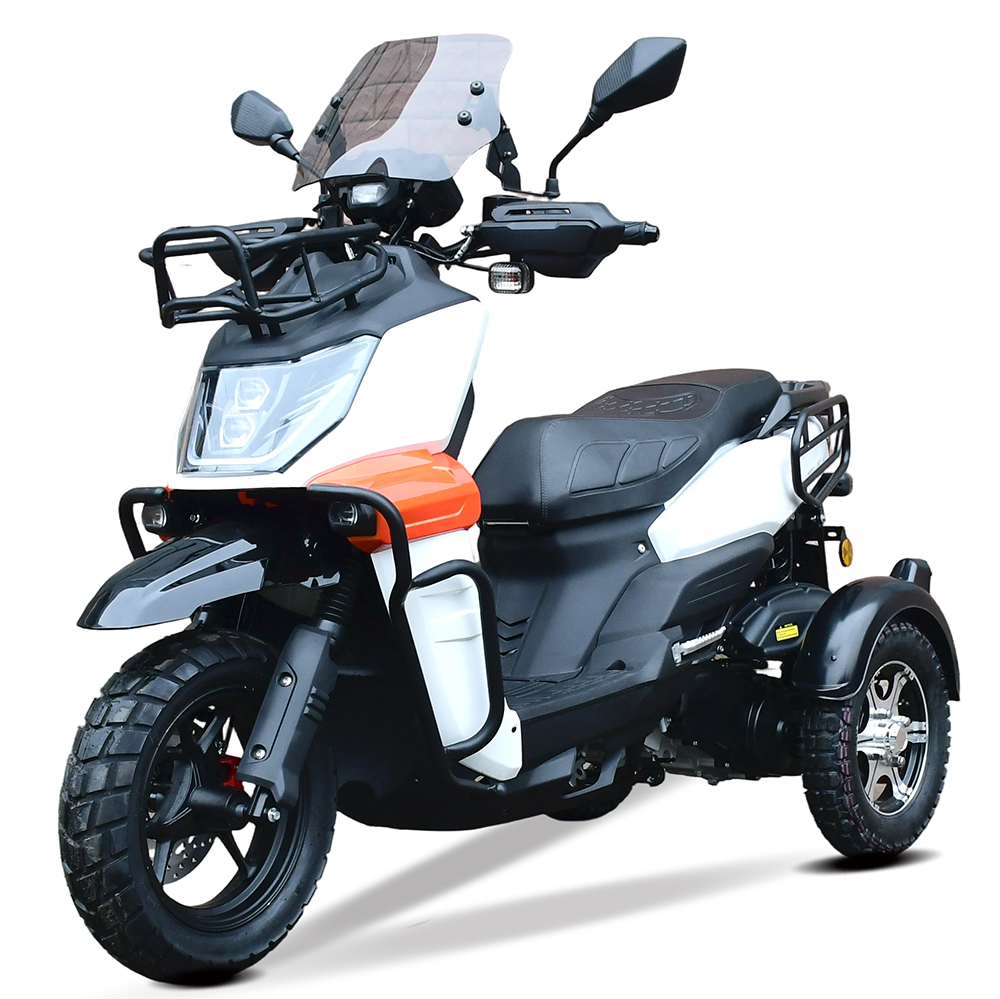

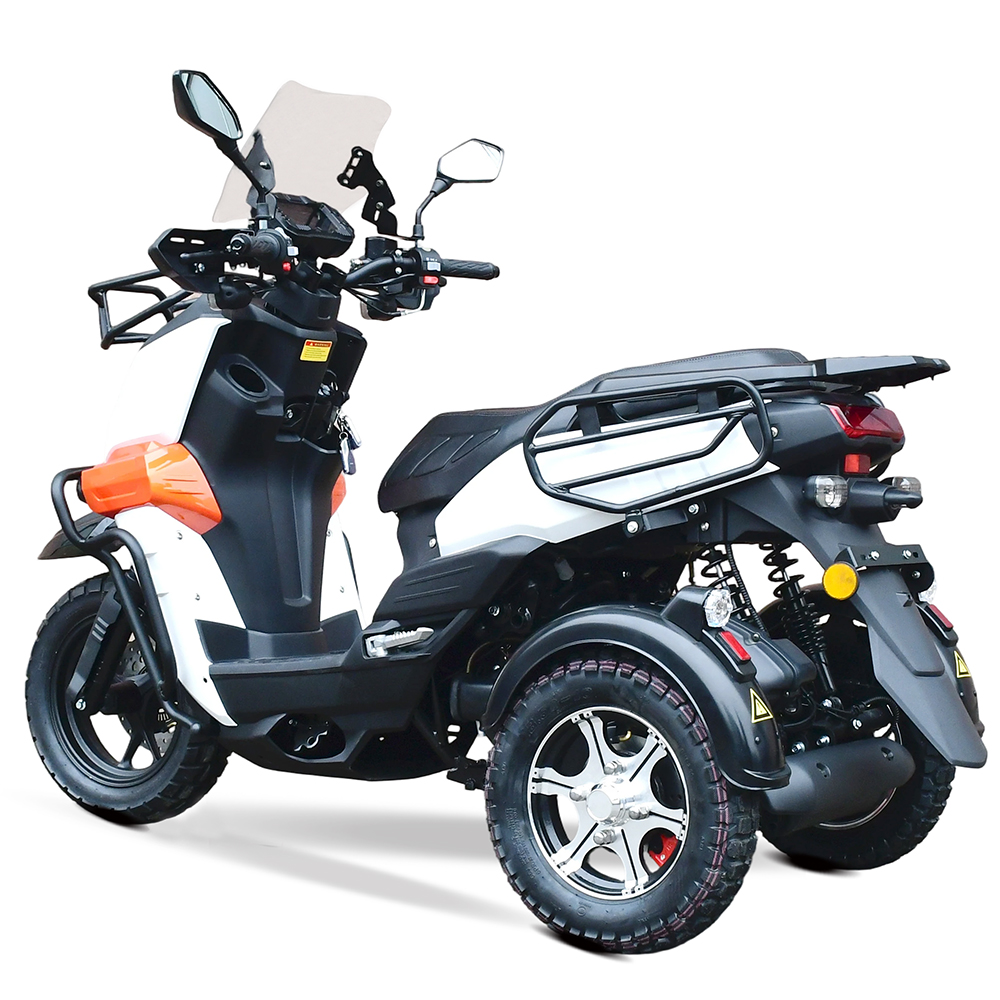

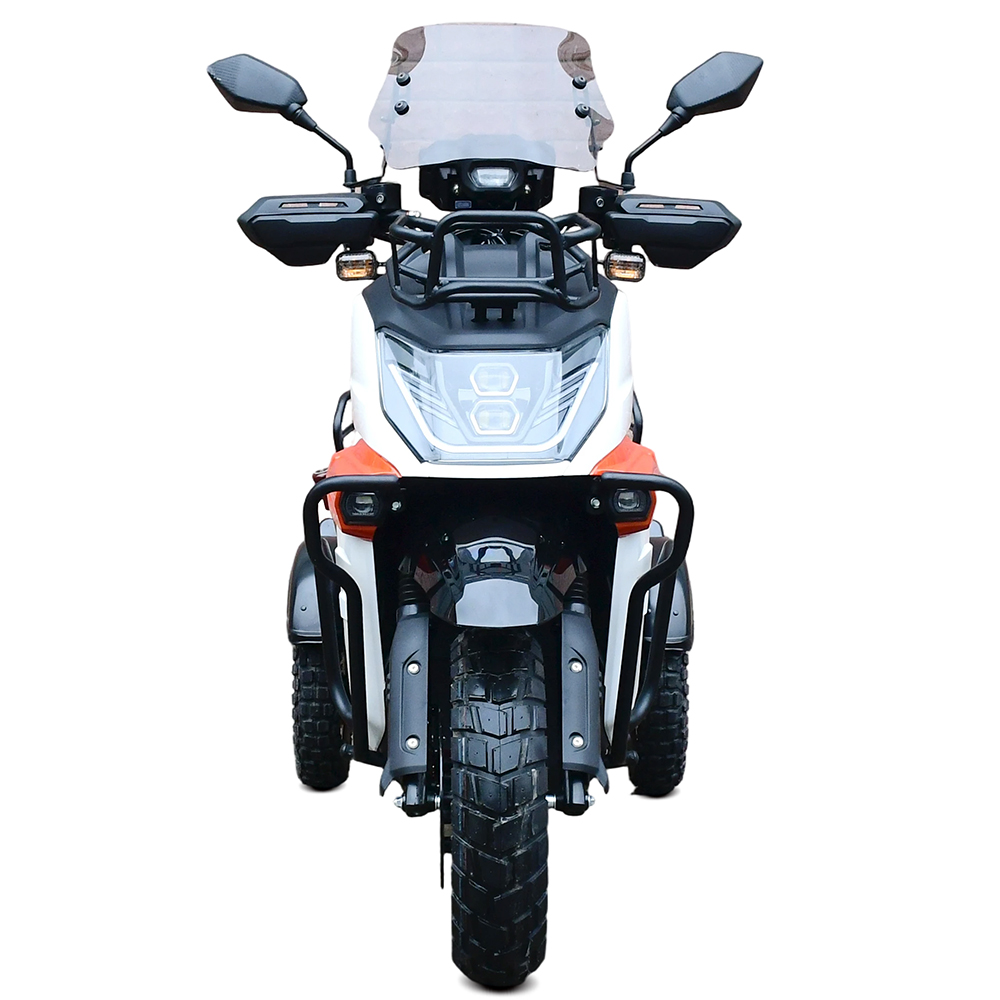

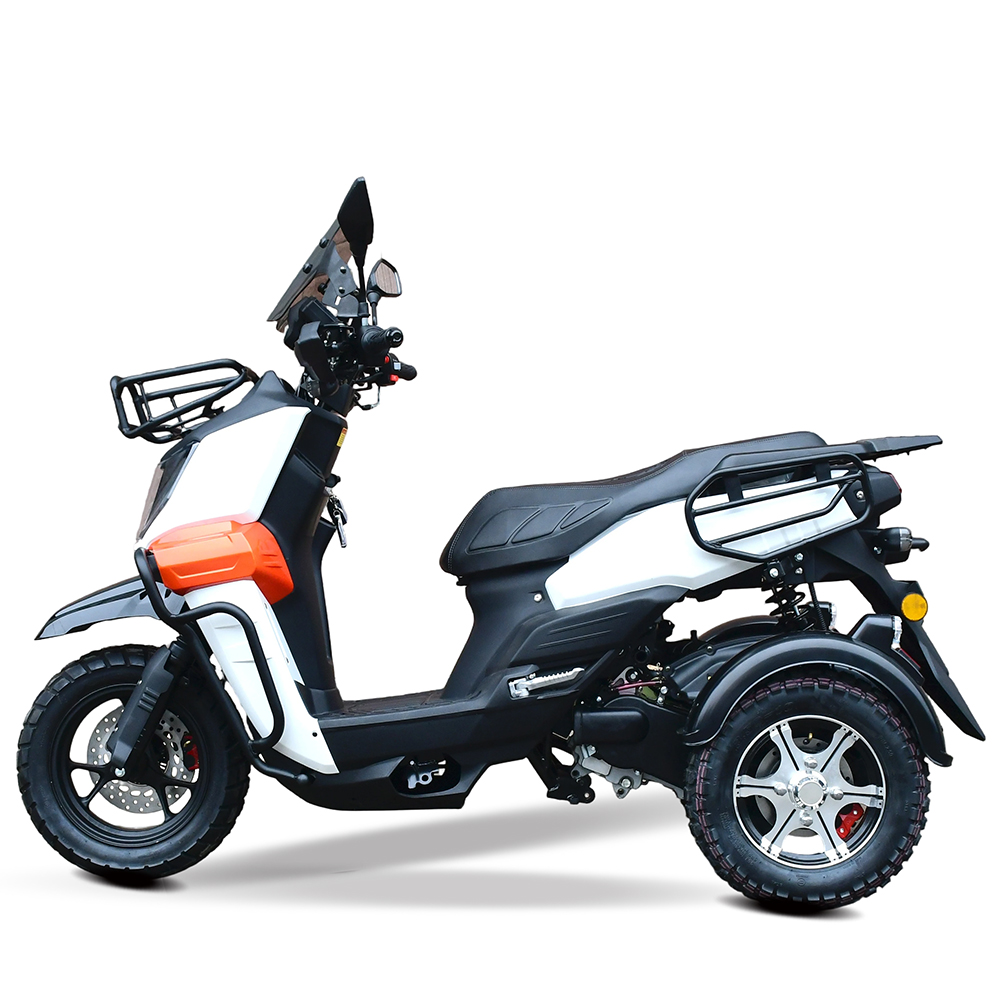

Detailed Pictures:

DSC_1194A

DSC_1208A

DSC_6056A

DSC_1215A

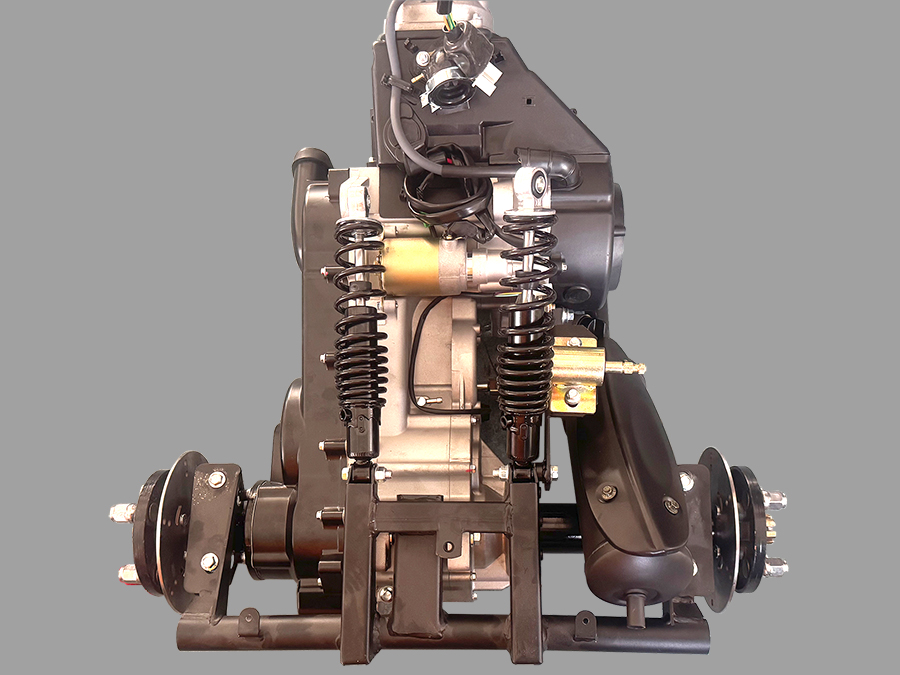

学东车架 (2B)
