TZM150S-2C
Z-MOTOS

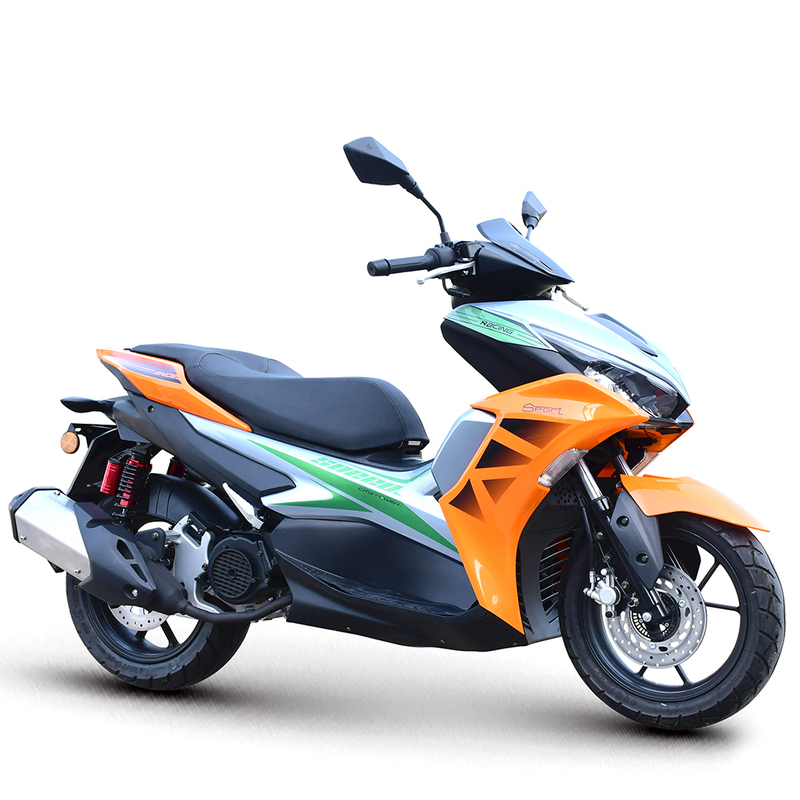

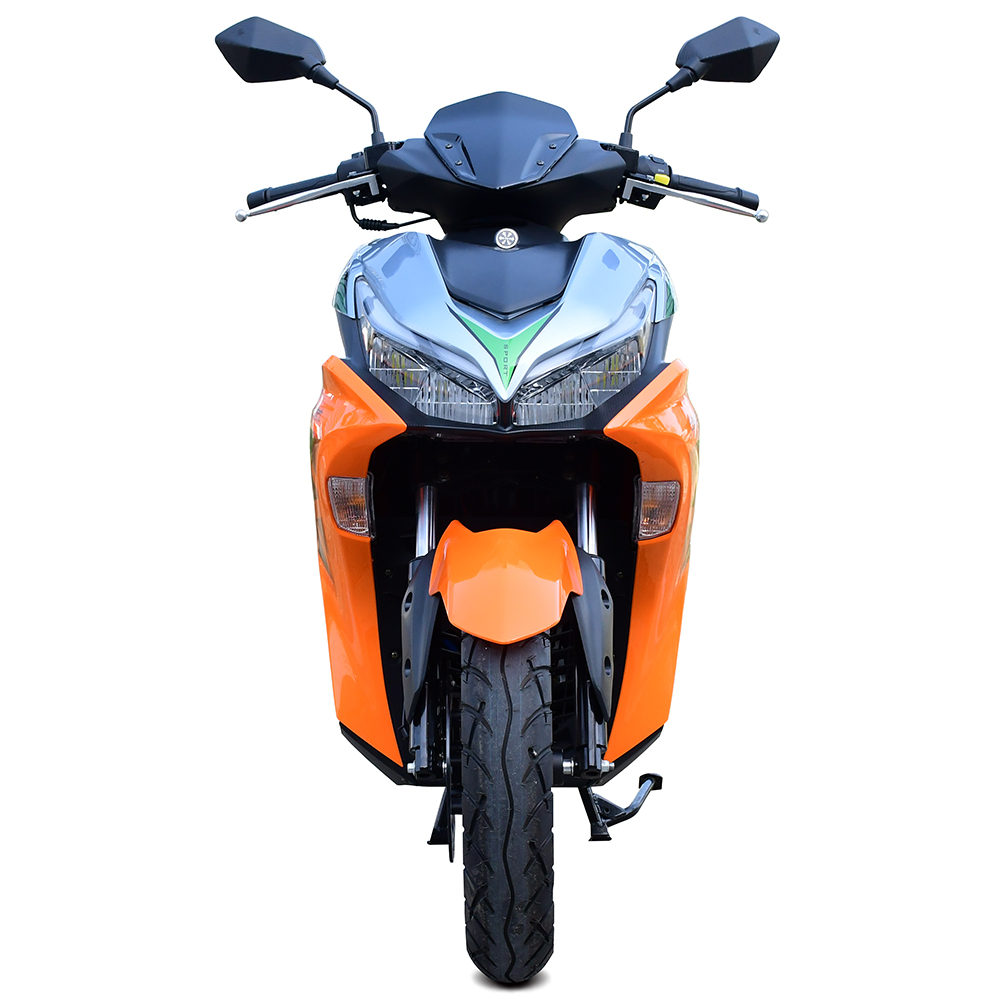

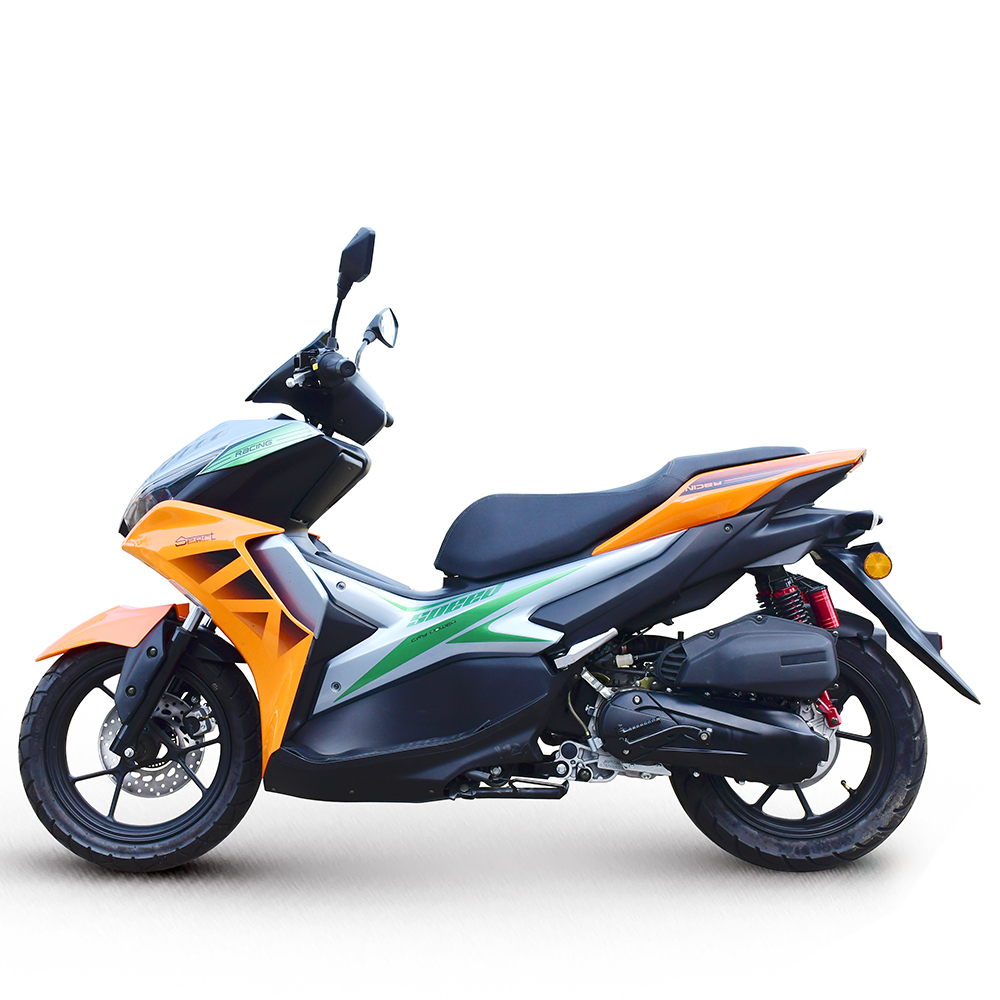

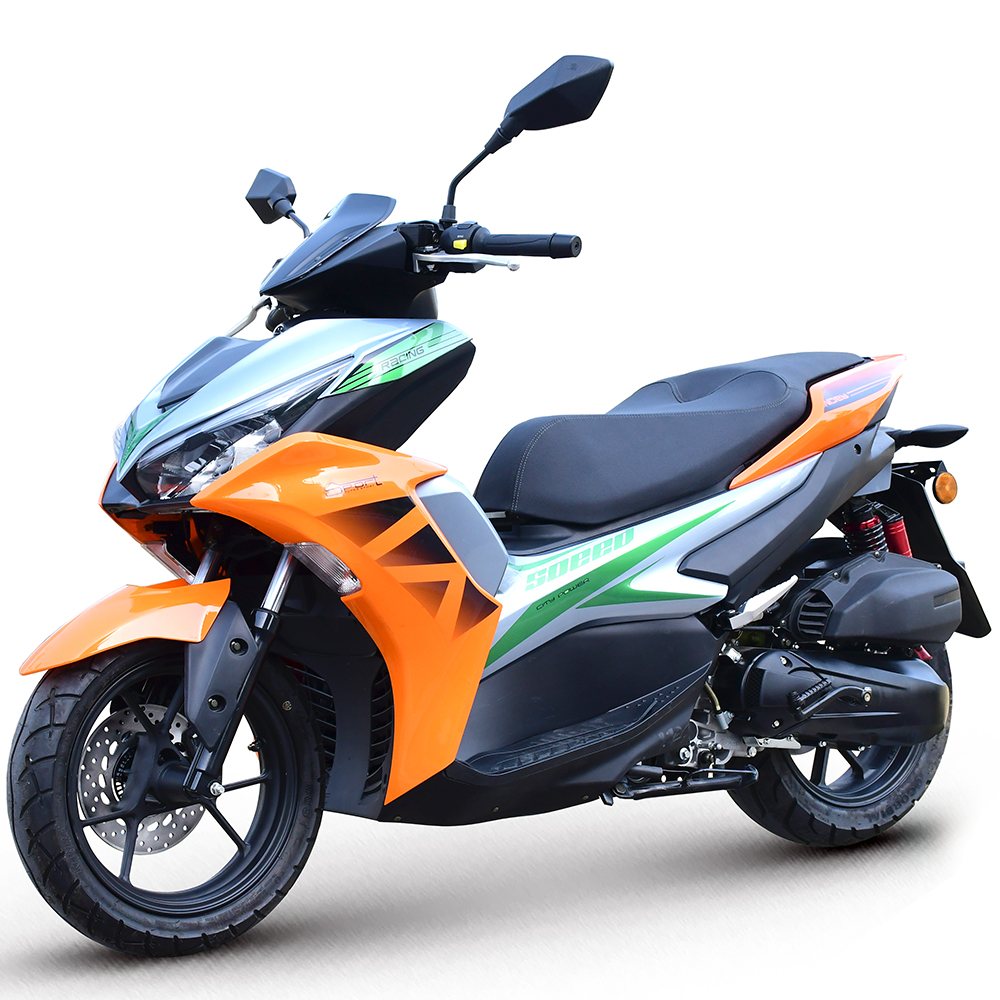

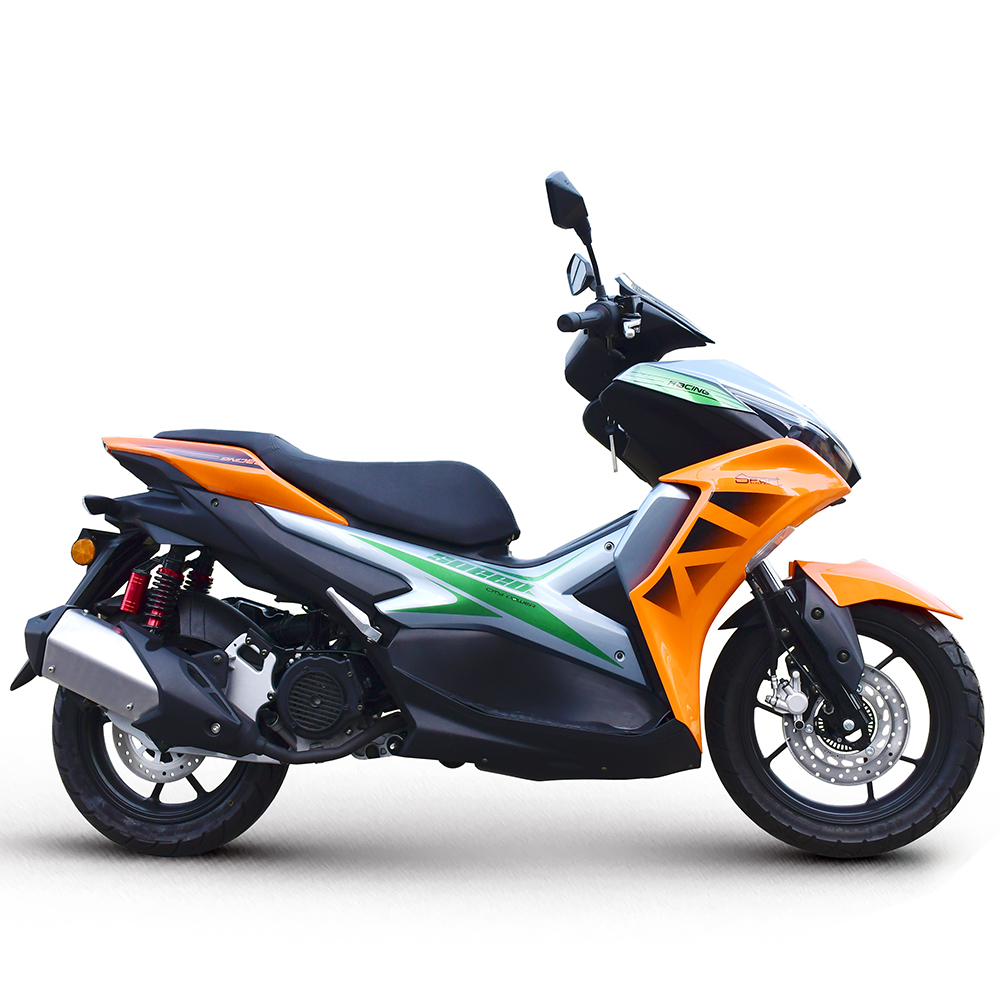

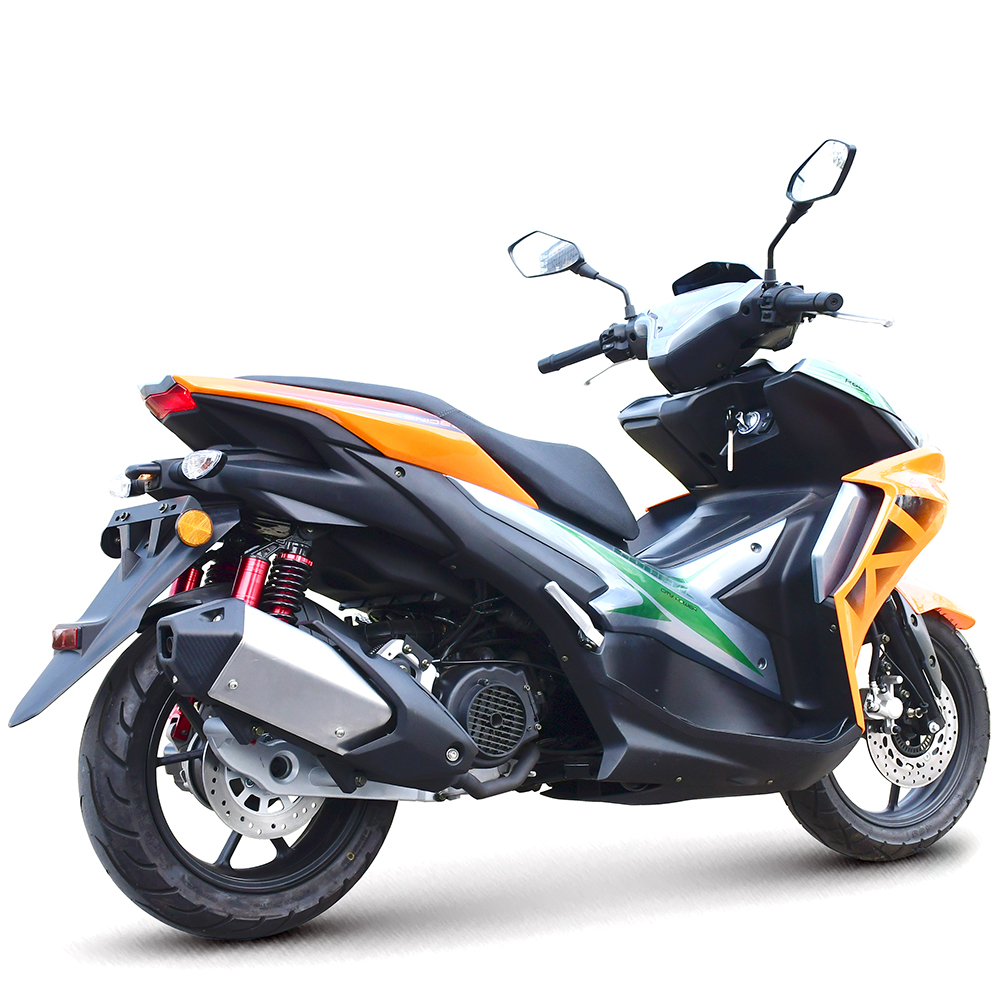

TZM150S-2C 125cc/150cc/180cc Scooter
150cc/180cc Air-cooled engine,
Alloy wheels, 130/60-13 Tires,
Front disc brake

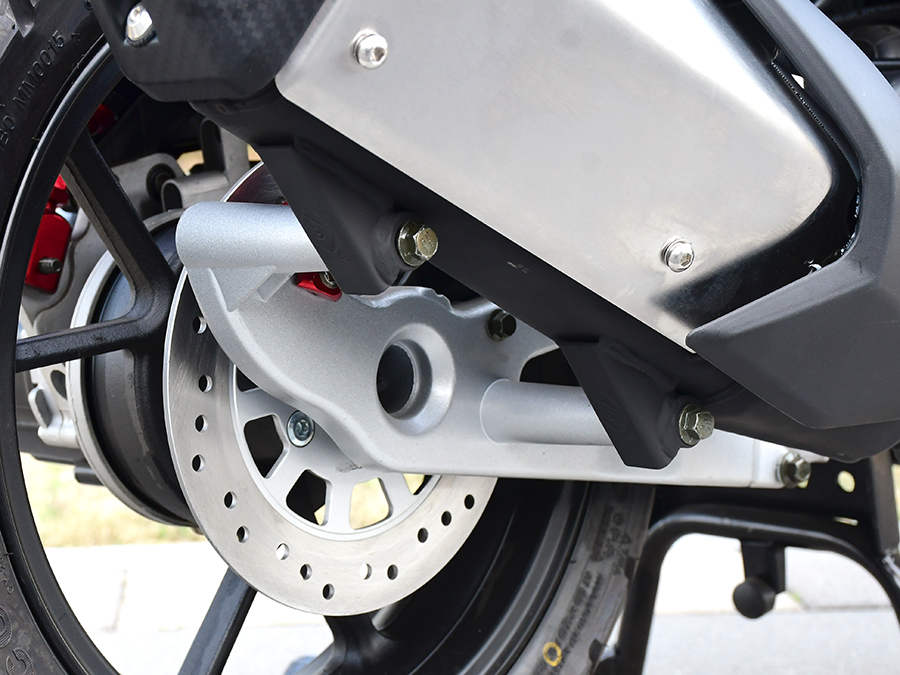

Rear drum/disc brake,
Double rear shock absorber,

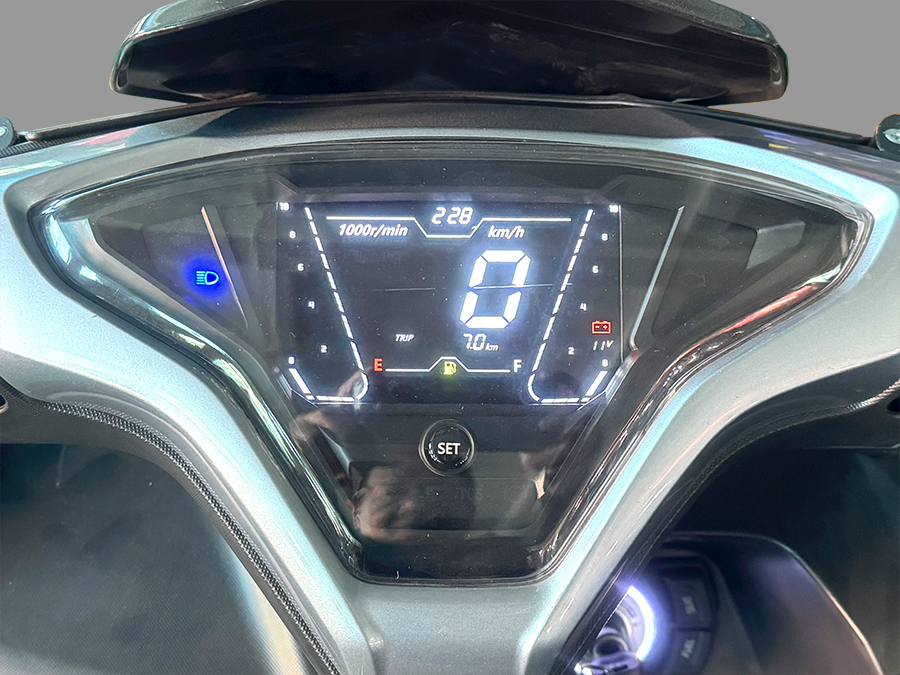

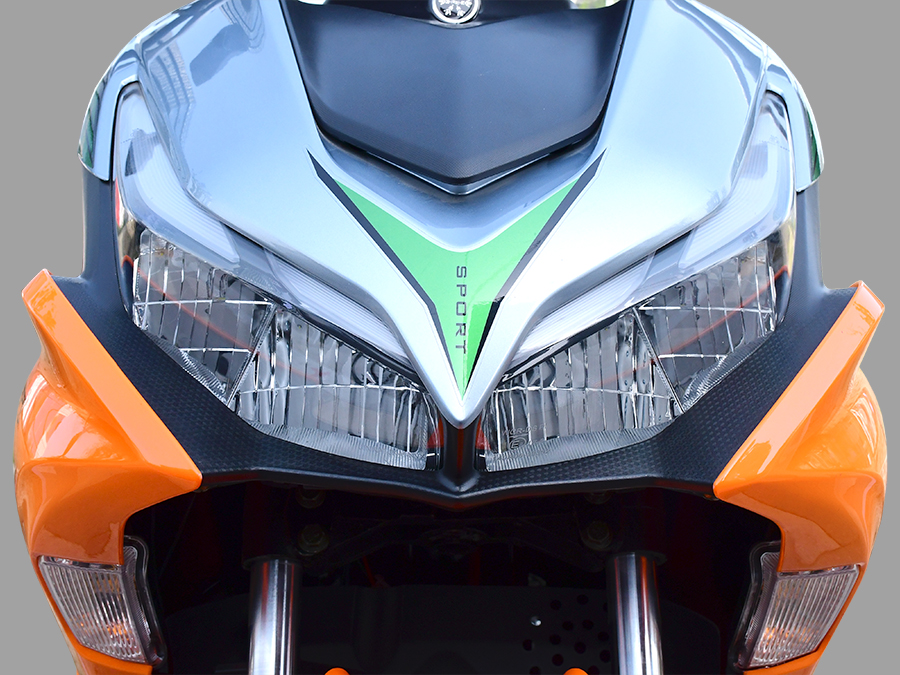

LED headlights, VA meter,
Steel muffler, Alloy rear carrier,

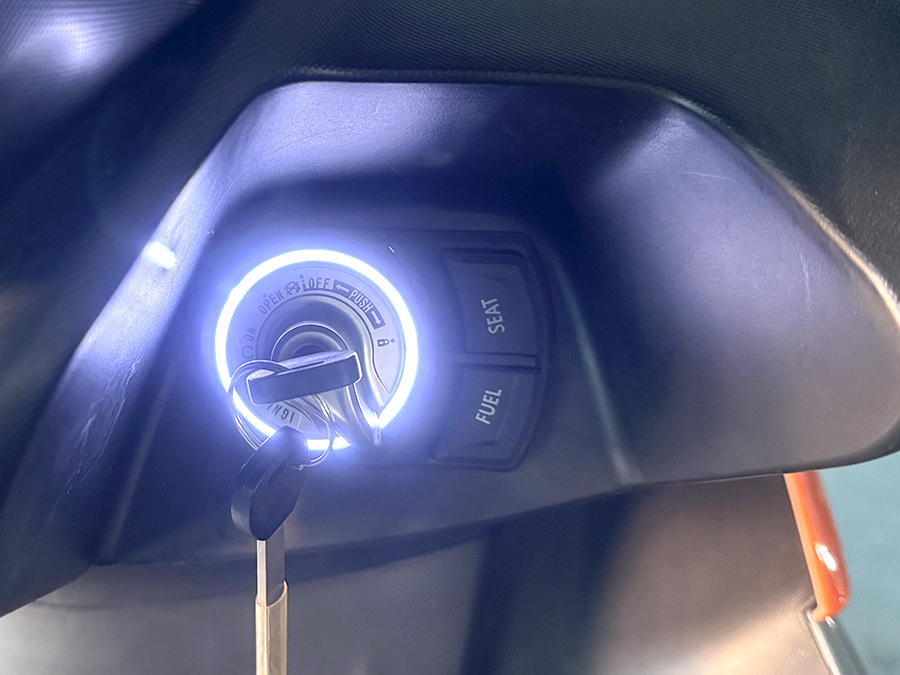

Remote control.
Technical Specifications:
Engine
Frame
Engine model
157QMJ
Dimension
1900*695*1090 mm
Cylinder
Single
Wheel Base
1395 mm
Valve
4 stroke
Ground clearance
150 mm
Cooling Type
Air-cooling
Seat Height
780 mm
Bore* Stroke
57.4*57.8mm
Dry weight
108 kg
Displacement
149.5 ml
Max. load
150 kg
Compression ratio
9.2:1
Max. speed
95 km/h
Starter
Electrical/Kick
Fuel Tank Capacity
5 L
Ignition
C.D.I
Brake (Fr./Rr.)
Disc/hand, Disc or drum/hand
Rated power
7.0 Kw 7500±500 r/min
Transmission
Belt + Shaft
Max. Torque
9.8 Nm 6000±500 r/min
Tire (FR/RR)
130/60-13 Tubeless
Fuel consumption
2.6L/100KM
Battery
12V-7A (BS)
Package
SKD
CKD
Packing status
Carton with iron bracket
Carton/Package
Packing size
1880*570*870mm
Qty in container
24/20GP, 50/40GP, 75/40HQ
M.O.Q
24 units
Detailed Pictures:
