TZM50F-22

50cc Scooter

  • TZM50F-22

  • ZMOTOS

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Motorcycle scooter motobike 50cc motorcycle 50cc scooter 50cc motorbike 50cc motor 50cc cheap scooter chinese scooter 50cc chinese scooter
Product Description
Specifications
Detailed Pictures

TZM50F-22 50cc Scooter


Engine: 50-80cc Air-cooled Engine

Wheel&Tire: Alloy wheel with 350-10 tire

Brake: Front disc and rear drum brake

Suspension: Double rear shock absorbers

Headlight: LED bulb

Dashboard: Mechanical meter

Optional: Steel carrier, Remote control, Rear box


Technical Specifications:

Engine

Frame

Engine model

139QMB /147QMB

Dimension

1880*700*1170mm

Cylinder

single

Wheel base

1320mm

Valve

4 stroke

Ground clearance

140 mm

Cooling

air cooling

Dry weight

91 kg

Bore* stroke

39*41.4mm (47*41.5mm)

Max. load

120 kg

Displacement

49ml / 72ml

Max. speed

45km/h (70km/h)

Starter

electrical

Clutch type

Automatic

Ignition

transistor

Brake(Fr./Rr.)

Disc/Hand, Drum/Hand

Rated power

2.2 kw 8000±500   r/min

Transmission

Belt + Shaft

Max.torque

3.6 N.m 4500±500   r/min

FR&RR wheel

steel wheel/ Alloy   wheel

Fuel consumption

2.2 L/100km

FR & RR tire

120/70-12 Tubeless   tire

Package

SKD

CBU

Packing status

Carton with iron   bracket

Carton with iron   bracket

Packing size

1850*570*860mm

1870*570*1150mm

Quantity in container

24/20GP, 50/40GP, 75/40HQ

24/20GP, 50/40GP

M.O.Q

75 units

100 units


Detailed Pictures:

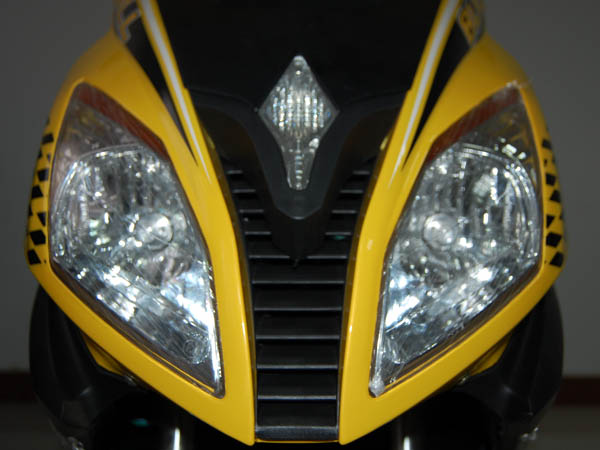

Headlight

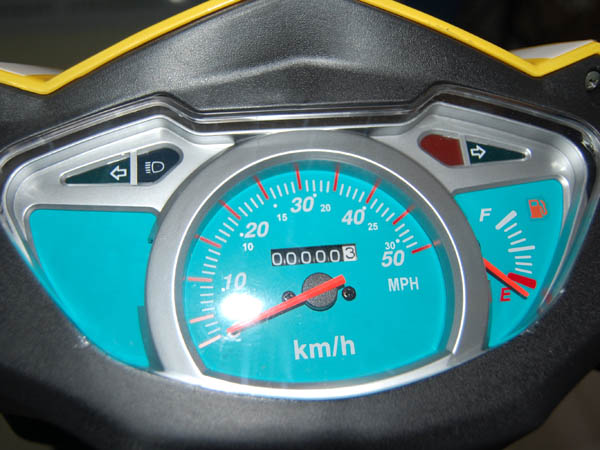

Meter

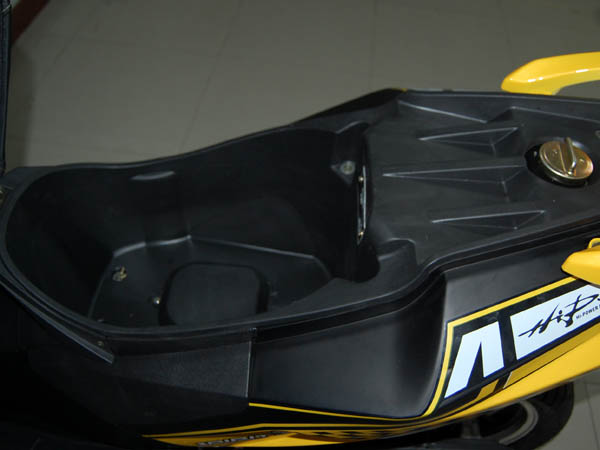

Luggage

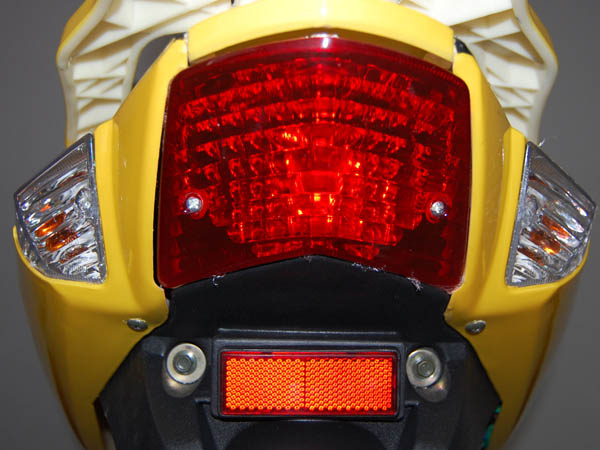

Taillight
