HELLBOY
LEGEND
HELLBOY can use 150cc, 200cc and 250cc balance shaft engines.
The most popular options are big rear carrier, rear side boxes, Front decorative lamps and remote control ect.
Technical specifications
Engine
Frame
Engine model
165FMM balance shaft
Dimension
2200*940*1240mm
Cylinder
Single
Wheel Base
1455mm
Valve
4-stroke
Dry weight
145 kg
Cooling Type
Air-cooling
Max. load
150 kg
Bore* Stroke
65.5 * 66.2mm
Max. speed
115km/h
Displacement
223.4ml
Clutch type
Manual
Starter
Electrical
FR&RR Brake
Double disc/ Single disc
Ignition type
C.D.I
Transmission
520 Chain
Compression ratio
(9.1-9.5):1
FR&RR Wheel
Alloy
Rated power
11.5 Kw 7500±500 r/min
FR&RR Tires
110/70-17, 150/70-17
Max. Torque
17N.m 5500±500 r/min
FR Shock
Upright
Fuel consumption
≦354g/Kw.h
RR Shock
Double
Spark plug
D8TC
Headlight
LED
Transmission type
6 gears, Reciprocating
Speedometer
LCD
Lubricant
SF15W/40
Seat
Single seat
Package
CBU/SKD
CKD
Packing status
Carton with iron bracket
Carton and Plywood box
Packing size
1950*560*860mm
1450*760*520mm
Qty in container
24/20GP, 48/40GP, 72/40HQ
40/20GP, 105/40HQ
MOQ
24 units
40 units

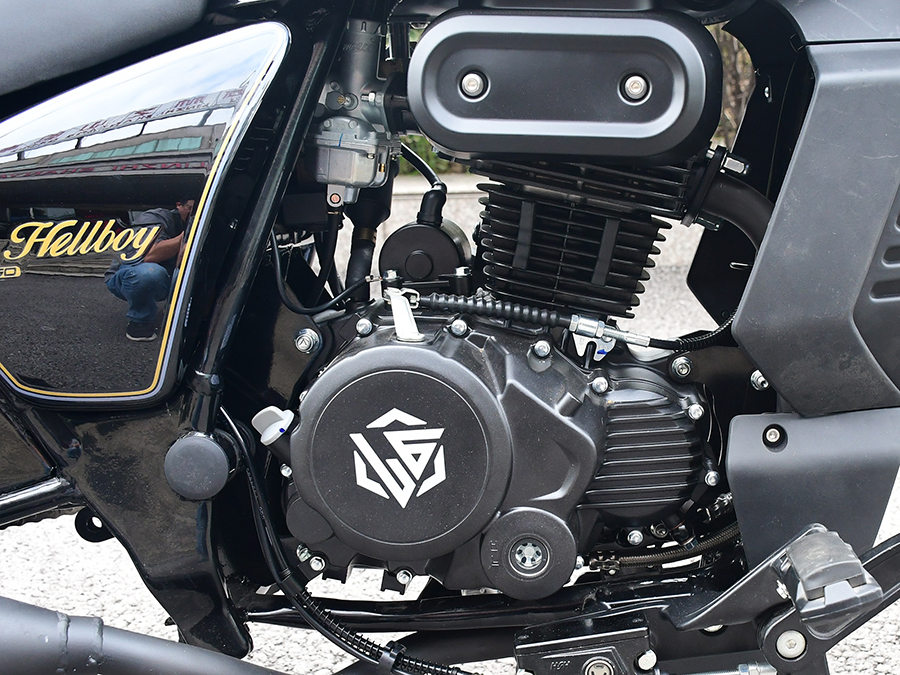

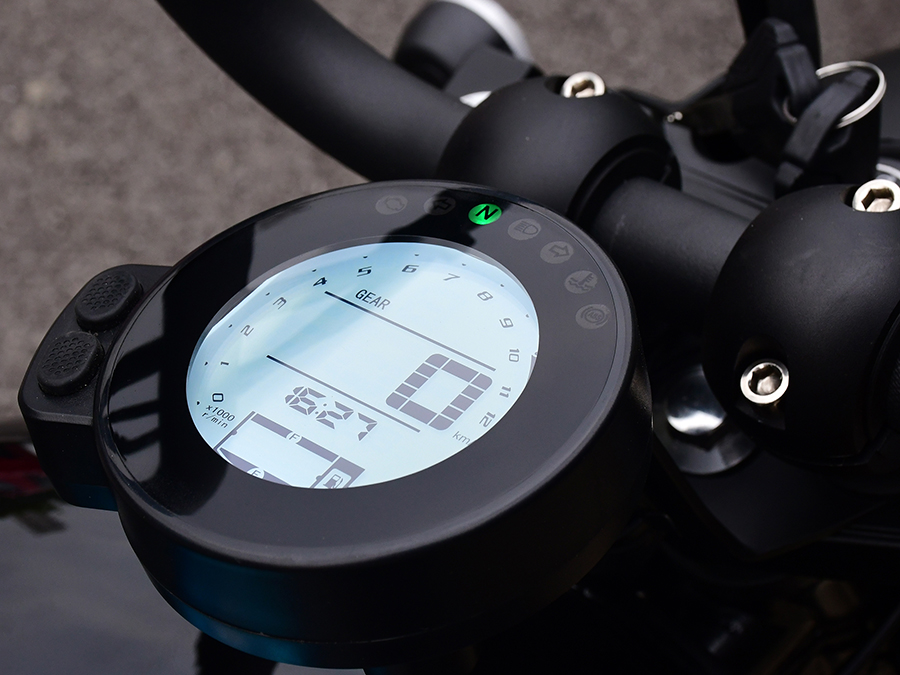

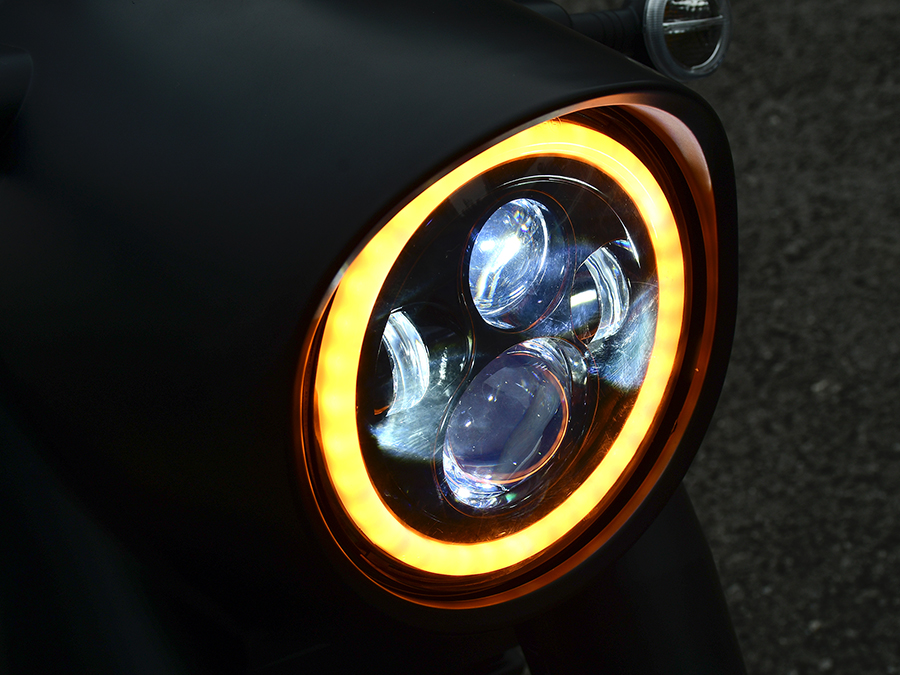

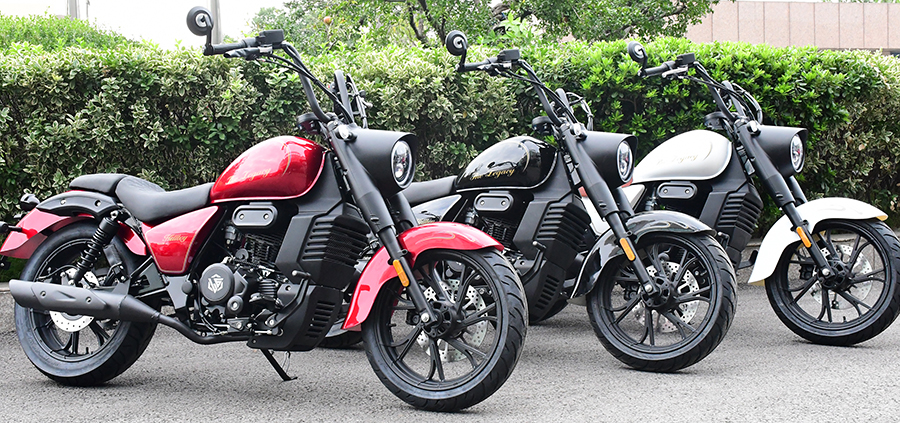

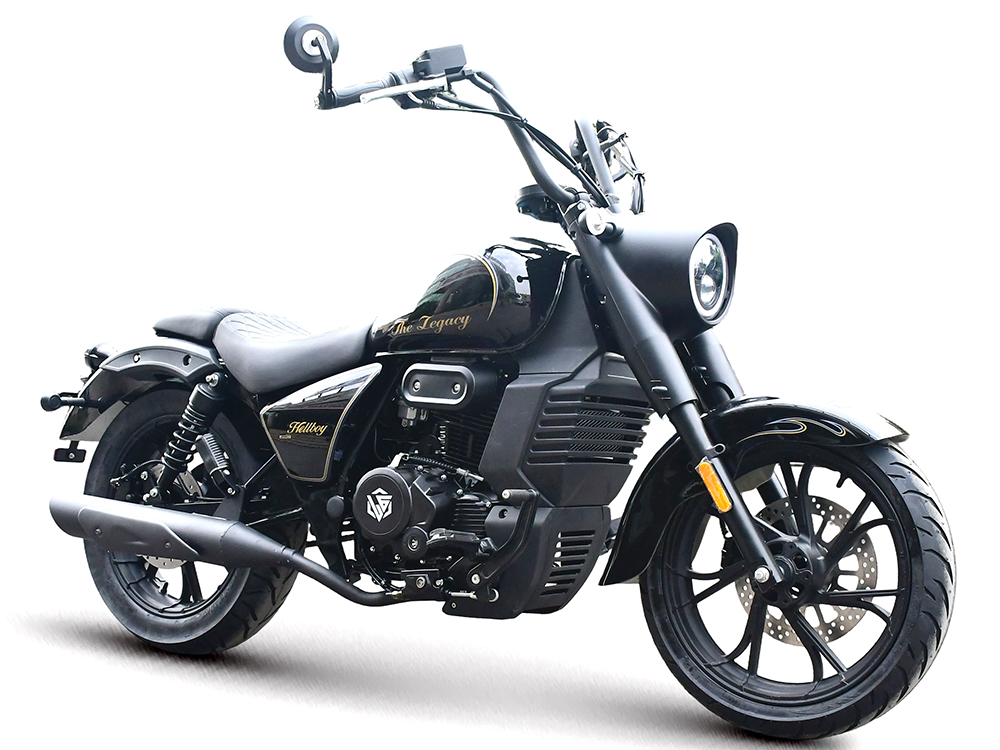

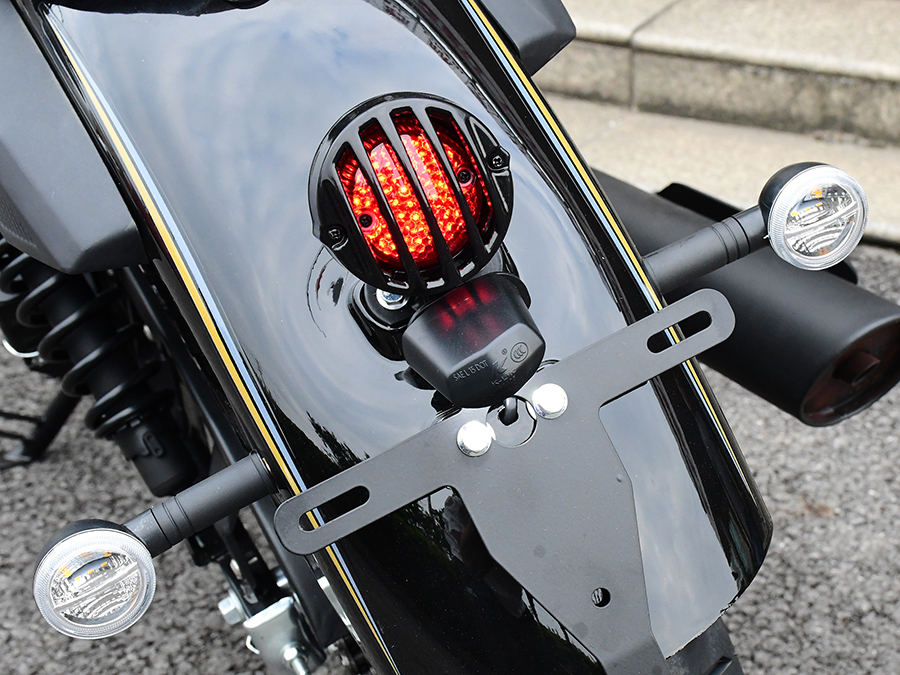

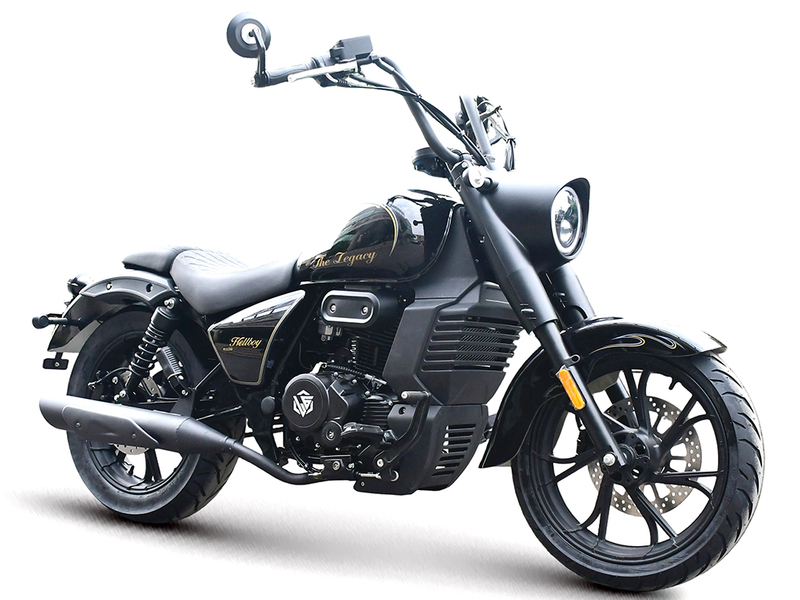

Detailed Pictures:
