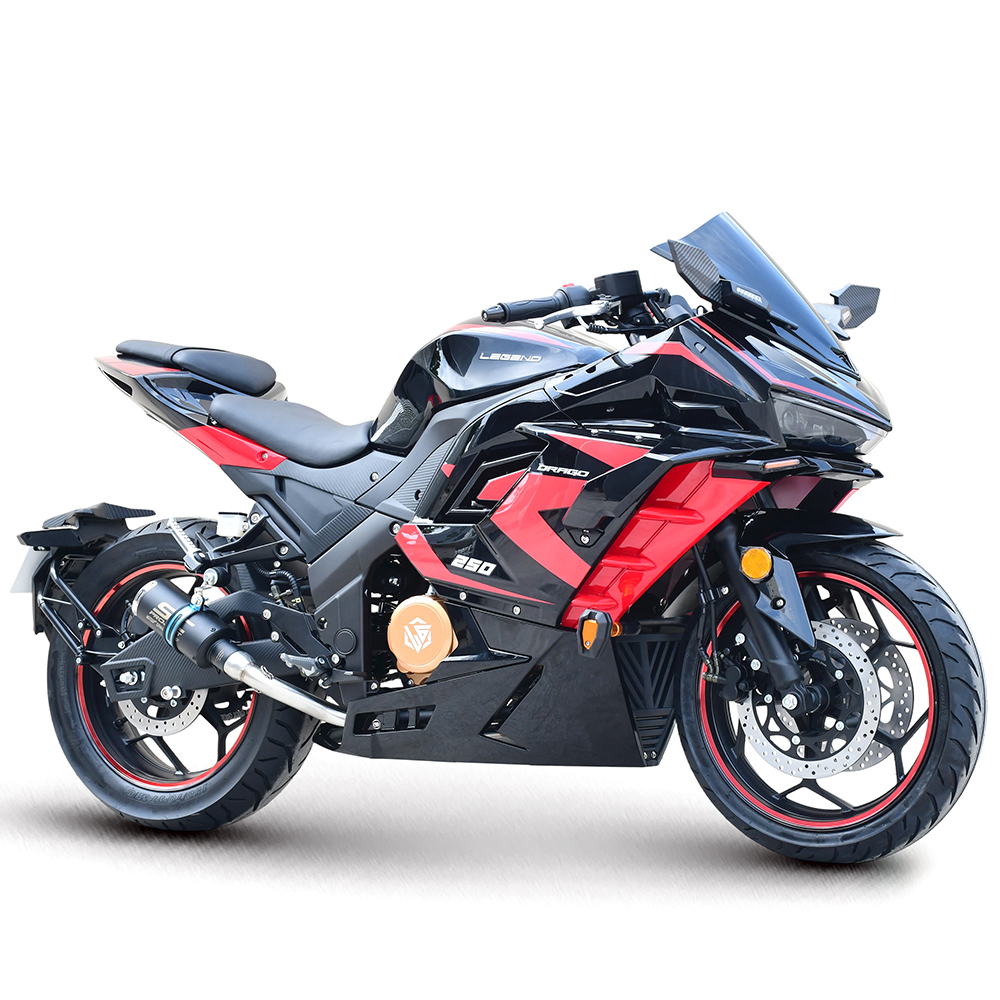

DRAGO
LEGEND
8711205090
OPTIONS:
The racing motorcycle use 250cc oil-cooled balance shaft engines.

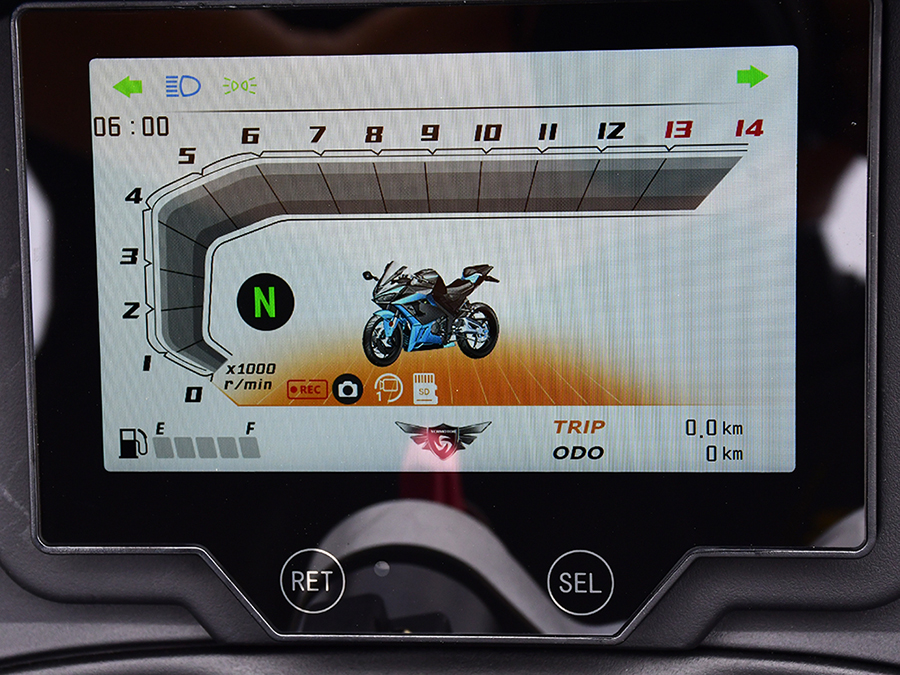

FTF meter with driving recorder.
There are upright or inverted types of front shock absorbers for this motorcycle.
The rear alloy fork or steel fork are optional.
Other options are EFI engine, Dual channel ABS, Unidirectional Electronic QuickSort, Remote control ect.
Technical specifications
Engine
Frame
Engine model
165FMM balance shaft
Dimension
2100*715*1110mm
Cylinder
Single
Wheel Base
1420mm
Valve
4-stroke
Dry weight
152 kg
Cooling Type
Air-cooling
Max. load
160 kg
Bore* Stroke
65.5 * 66.2mm
Max. speed
120 km/h
Displacement
223.4ml
Clutch type
Manual
Starter
Electrical
Brake (Fr./Rr.)
Disc/Hand, Disc/Foot
Ignition
C.D. I
Transmission
520 Chain
Rated power
11.5 kw 7500±500 r/min
FR & RR Wheel
17 Inch Alloy Wheels
Max. Torque
17N.m 5500±500 r/min
FR & RR Tires
110/70-17, 150/70-17 Tubeless
Package
CBU/SKD
CKD
Packing status
Carton with iron bracket
Carton with wooden bracket
Packing size
1950*560*860mm
Qty in container
24/20GP, 48/40GP, 72/40HQ
100/40HQ
M.O.Q
24 units
100 units
Detailed Pictures:

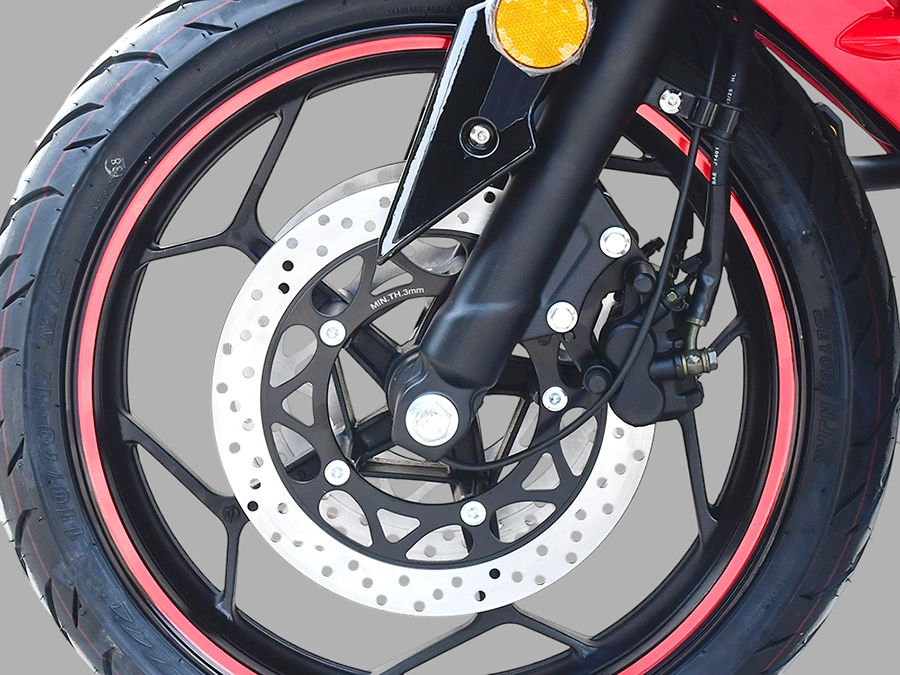

Two different front disc brake cover optional
Steel rear fork, Double rocker arm alloy rear fork and Single rocker arm alloy rear fork optional
