TZM150A-10

125cc/150cc Falcon Scooter

  • TZM150A-10

  • ZMOTOS, OEM

  • 8711203000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Falcon 150 gas scooter Falcon 125cc motorcycle 125cc scooter 125cc motorbike 150cc motorcycle 150cc scooter chinese scooter Cheaper scooter
Product Description
Specifications
Detailed Pictures

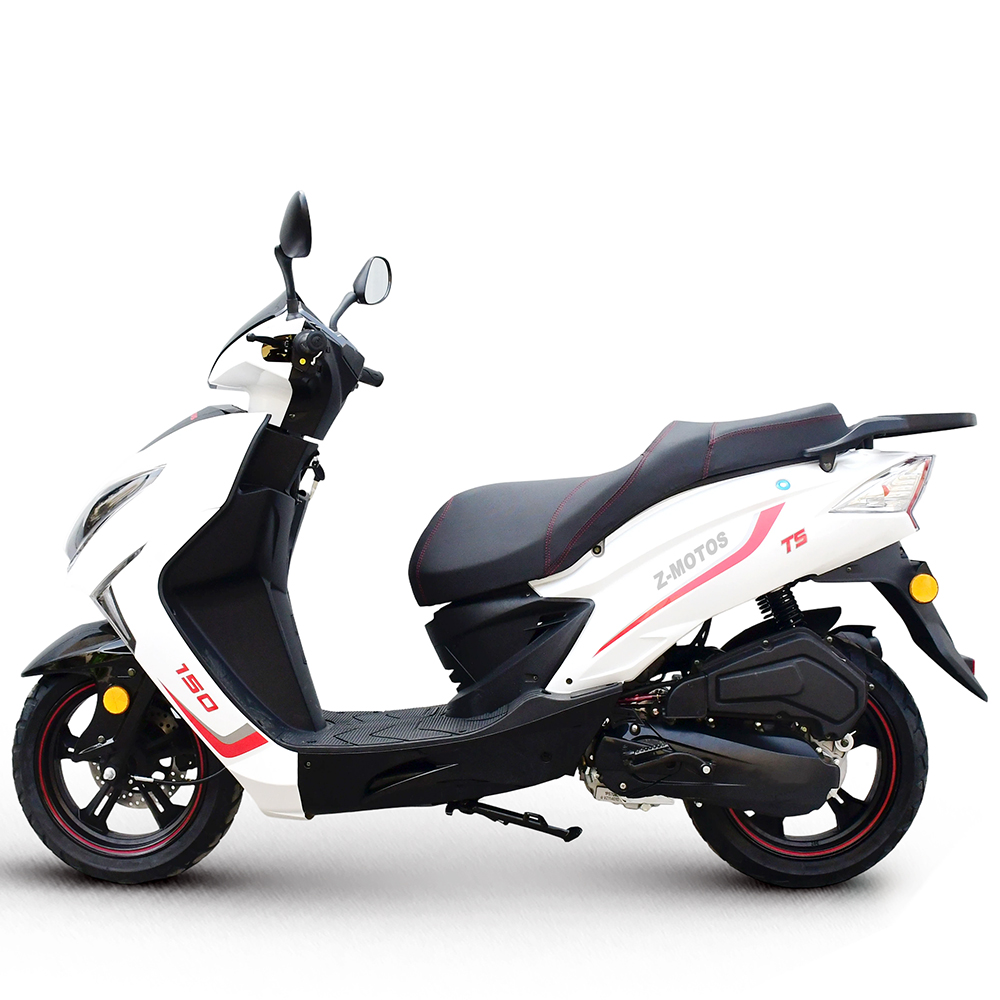

TZM150A-10 125cc/150cc Scooter


Engine: 125-150cc Air-cooled Engine

Wheel&Tire: Alloy wheel with 130/60-13 tire

Brake: Front disc and rear drum brake

Suspension: Double rear shock absorbers

Headlight: LED headlight

Dashboard: Mechanical/LCD meter

Optional: Bluetooth MP3, Remote control, Rear box


Technical Specifications:

Engine

Frame

Engine model

157QMJ

Dimension

1960*700*1170mm

Cylinder

Single

Wheel Base

1370mm

Valve

4 stroke

Ground clearance

130 mm

Cooling Type

Air-cooling

Seat Height

780 mm

Bore* Stroke

57.4*57.8mm

Dry weight

114 kg

Compression ratio

9.2:1

Max. load

150 kg

Displacement

149.5 ml

Max. speed

85 km/h

Starter

Electrical/Kick

Fuel Tank Capacity

6.5 L

Ignition

Transistor

Front Brake

Disc / Hand

Rated power

7.0 Kw 7500±500 r/min

Rear Brake

Drum / Hand

Max. Torque

9.8 Nm 6000±500 r/min

Transmission

Belt + Shaft

Fuel consumption

2.6L/100KM

FR&RR Tire

130/60-13 tubeless

Package

SKD

CBU

Packing status

Carton with iron bracket

Carton with iron   bracket

Packing size

1890*570*860mm

1970*570*1150mm

Qty in container

24/20GP, 50/40GP, 75/40HQ

22/20GP, 48/40GP, 48/40HQ

M.O.Q

24 units

22 units


Detailed Pictures:

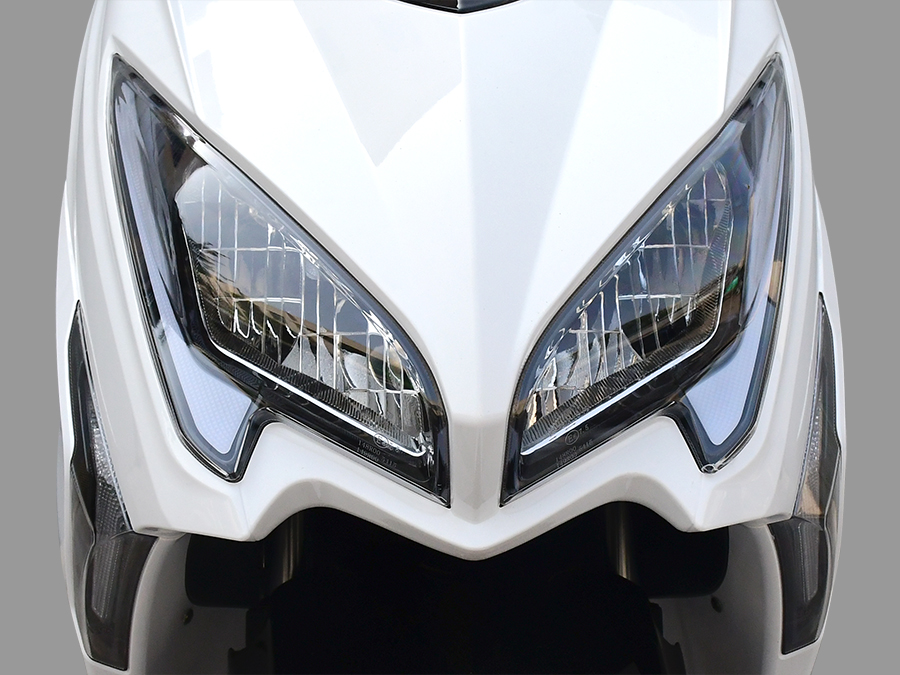

DSC_8888A

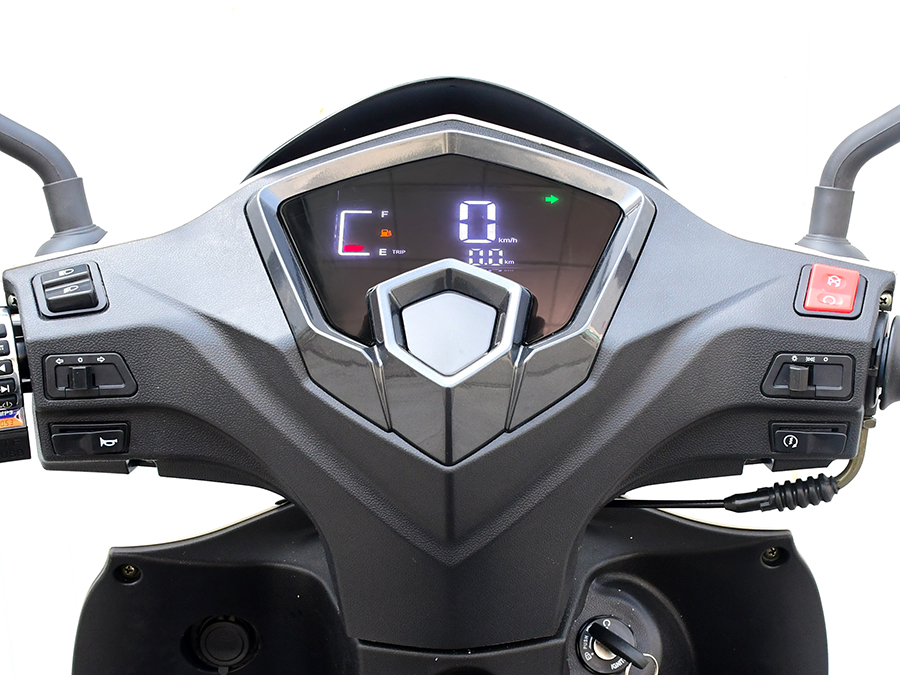

DSC_8873

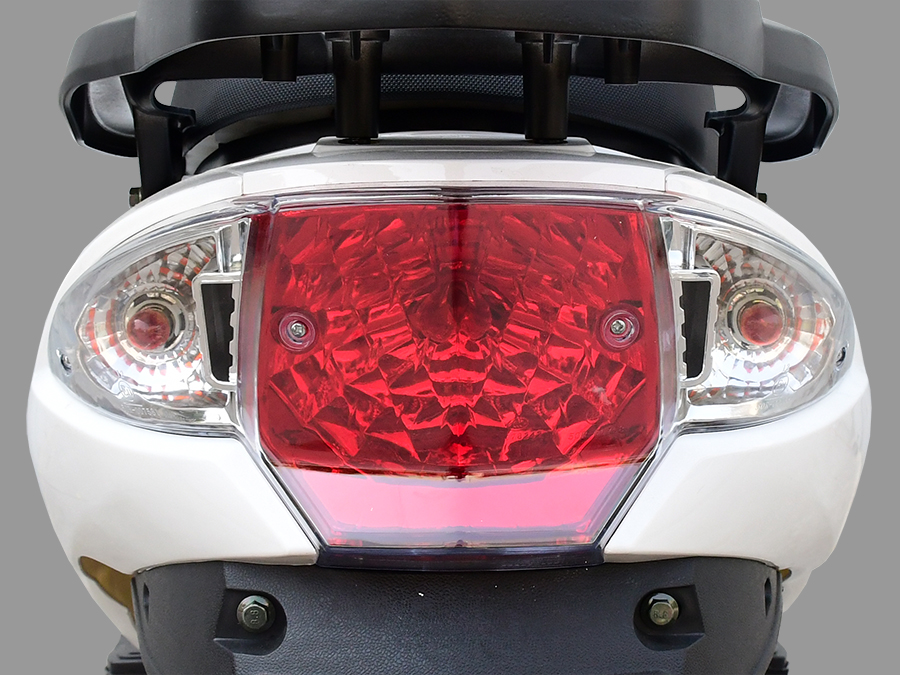

DSC_8872A

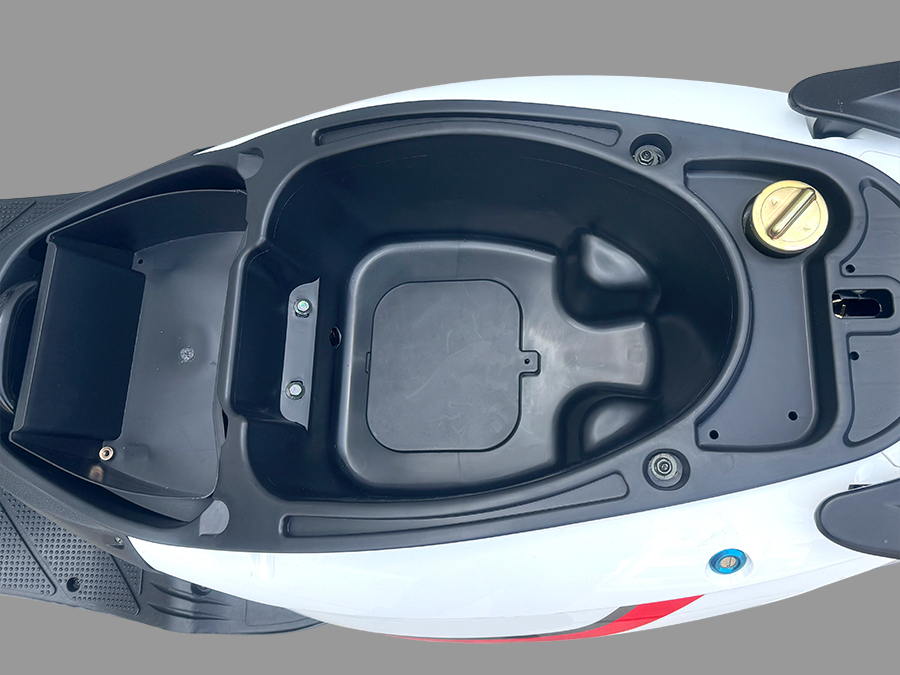

DSC_8889A


Related Products

CZM400G-5
CZM400G-5
TZM50B-2
TZM50B-2
RZM250B-6B
RZM250B-6B
RZM250D-1B
RZM250D-1B
TZM125G-3
TZM125G-3
TZM125I-6
TZM125I-6
TZM125K
TZM125K
RZM250N-2
RZM250N-2
RZM250Y-1A
RZM250Y-1A
RZM250T
RZM250T
EM03H
EM03H
ES65
ES65
ES61
ES61
ES11B
ES11B
CZM150H-9
CZM150H-9
CZM150B-2
CZM150B-2
TZM150L-2
TZM150L-2
RZM250D-6B
RZM250D-6B
RZM250B-8C
RZM250B-8C

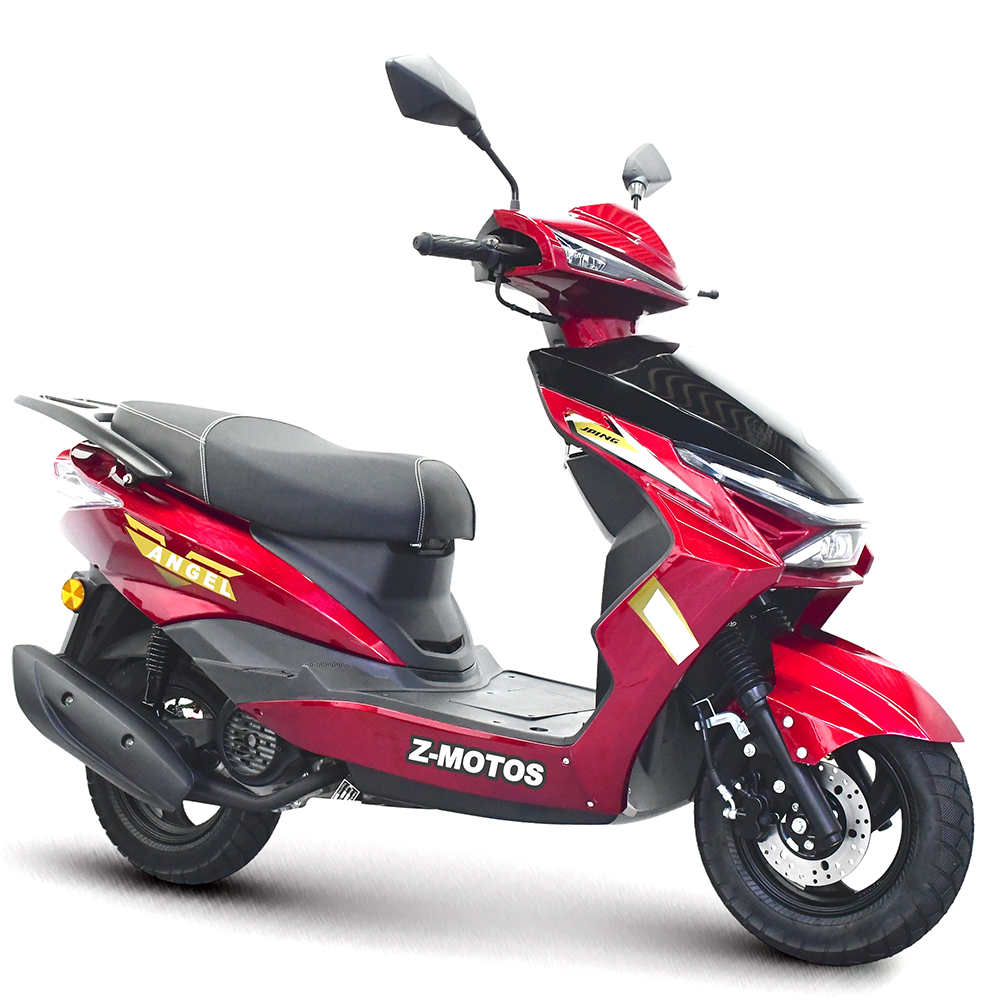

TZM150G-12
