TZM150L-9
ZMOTOS

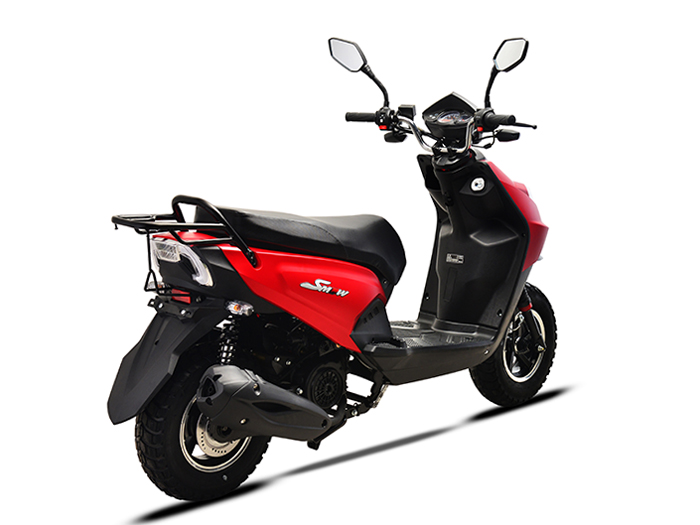

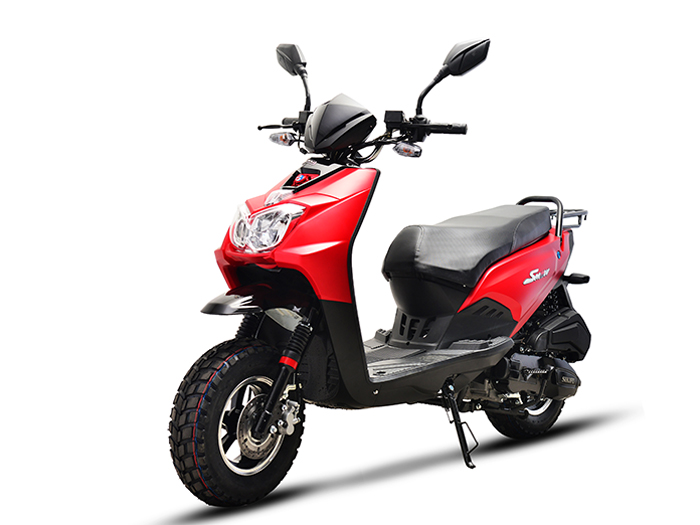

TZM150L-8A 125cc/150cc Scooter
125-150cc Air-cooled engine,
Alloy wheels, 120/70-12 Tires,
Front disc & rear drum brake,
Double rear shock absorber,

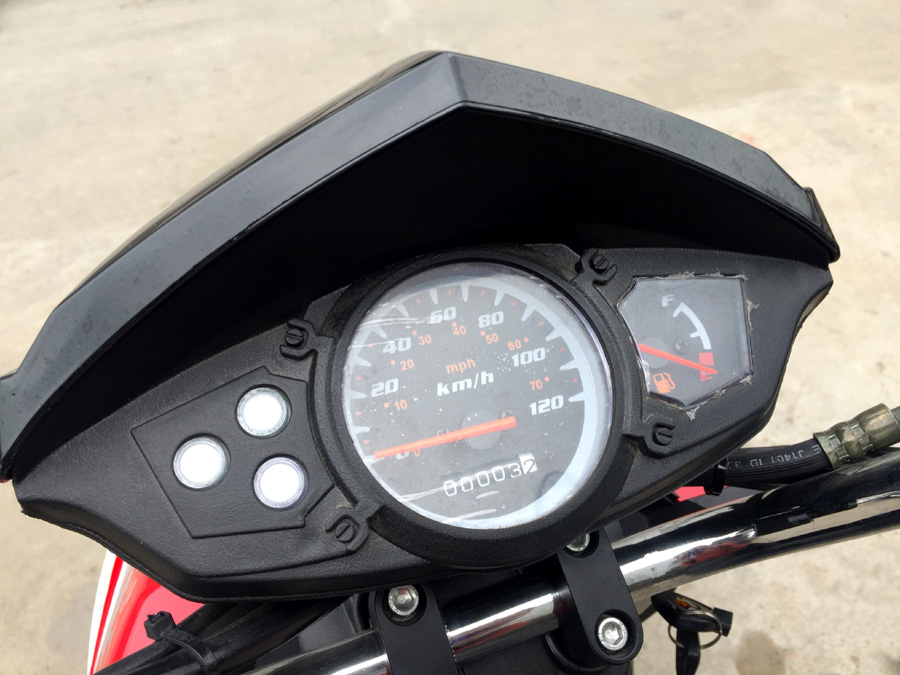

LED bulbs, Mechanical meter,
Steel muffler, Steel rear carrier,
Handle cover, Remote control.
Technical Specifications:
Engine
Frame
Engine model
157QMJ
Dimension
1960*730*1150mm
Cylinder
Single
Wheel Base
1380mm
Valve
4 stroke
Ground clearance
140 mm
Cooling Type
Air-cooling
Seat Height
780 mm
Bore* Stroke
57.4*57.8mm
Dry weight
102 kg
Compression ratio
9.2:1
Max. load
150 kg
Displacement
149.5 ml
Max. speed
85 km/h
Starter
Electrical/Kick
Fuel Tank Capacity
6.5 L
Ignition
Transistor
Clutch type
Automatic
Rated power
7.0 Kw 7500±500 r/min
Brake (Fr./Rr.)
Disc/Hand, Drum/Hand
Max. Torque
9.8 Nm 6000±500 r/min
Transmission
Belt + Shaft
Fuel consumption
2.6L/100KM
FR & RR Tire
120/70-12 or 120/90-10
Package
SKD
CBU
Packing status
Carton with iron bracket
Packing size
1800*570*860mm
1870*570*1150mm
Qty in container
24/20GP, 50/40GP, 75/40HQ
24/20GP, 50/40GP
M.O.Q
24 units
Detailed Pictures:
